R5F109ACKSP#X0 - Renesas Electronics

Description: RL78/F12 microcontrollers are available in a 20 to 64-pin, 8 to 64 KB flash memory lineup, and realize the industry's lowest level of consumption current. They have a built-in LIN module as an automotive interface. With various built-in functions for realizing functional safety including flash memory CRC calculation, illegal memory access detection, RAM guard, A/D converter testing, and SFR guard, a highly reliable system can be built, so these microcontrollers can be used for industrial applications and of

Download R5F109ACKSP#X0 Model

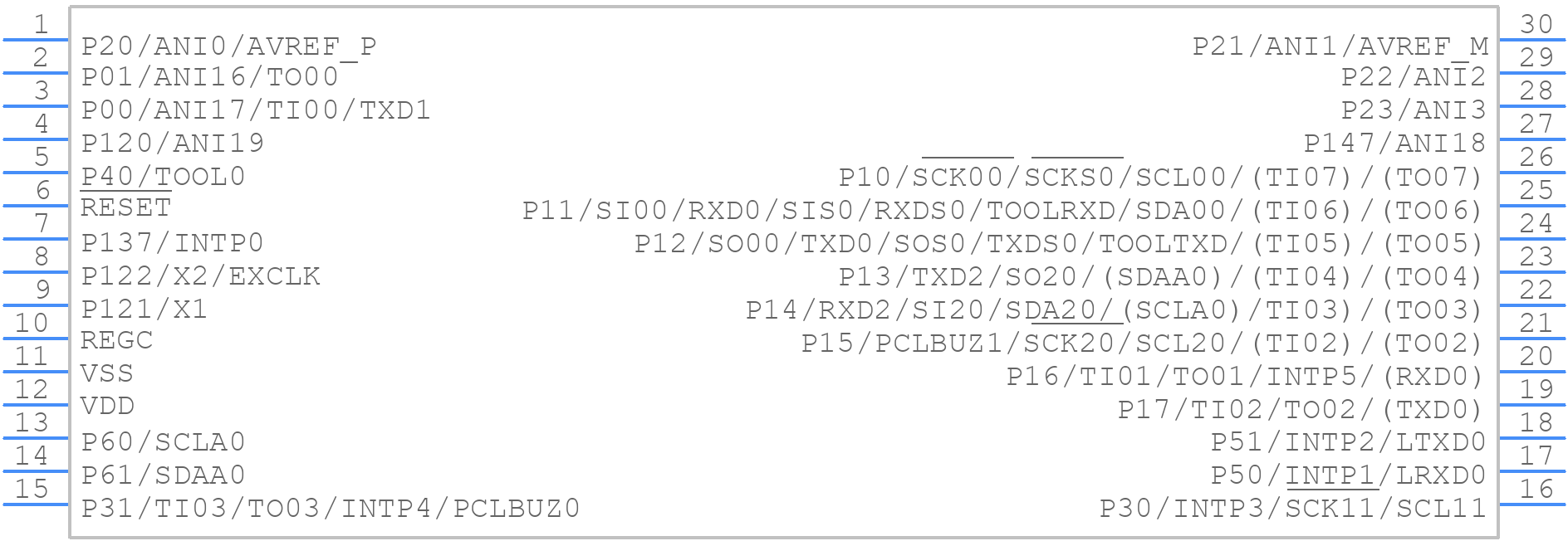

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F109ACKSP#X0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 30-PIN PLASTIC SSOP (7.62 mm (300))
click to zoom
3D Models
R5F109ACKSP#X0 - Renesas Electronics  - 3D model - Small Outline Packages - 30-PIN PLASTIC SSOP (7.62 mm (300))
click to zoom

R5F109ACKSP#X0 Details

  • Manufacturer Part Number:

    R5F109ACKSP#X0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Package Description:

    SSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Has ADC:

    YES

  • Additional Feature:

    ADC AVAILABLE IN 8-BIT ALSO

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    6.65 mm

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F109ACKSP#X0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and clock configuration options.
  • The maximum operating frequency of the R5F109ACKSP#X0 is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature ranges. However, this is not recommended for production use.
  • The R5F109ACKSP#X0 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR) and the Watchdog Timer Reload Register (WTREL). Refer to the user manual for specific register settings and configuration options.
  • The VBAT pin is used to connect a battery or a supercapacitor to provide power to the internal real-time clock (RTC) and other low-power modes. This allows the device to maintain its internal state and clock even when the main power supply is turned off.
