Description:RL78/F13 microcontrollers are successors to the 78K0R and R8C, are available in a 20 to 80-pin, 16KB to 128KB flash memory lineup and realize the industry's lowest level of consumption current. They have a built-in CAN module and LIN module for automotive interfaces, and in addition to the functional safety features, a RAM ECC function, PLL lock function, port output state monitoring, stack overflow detection, dedicated WDT oscillator and more have also been added. Since a more highly reliable system can be
The recommended operating temperature range for the R5F10A6CKSP#W5 is -40°C to 85°C, but it can operate up to 105°C with some limitations. However, it's essential to consult the datasheet and application notes for specific temperature-related guidelines.
Renesas provides a Secure Boot mechanism through the RA Family Secure Firmware Development Kit. This kit includes tools, documentation, and sample code to help implement secure boot mechanisms on the R5F10A6CKSP#W5. Consult the Renesas website for more information and resources.
The power consumption of the R5F10A6CKSP#W5 varies depending on the operating mode, clock frequency, and peripheral usage. According to the datasheet, the typical current consumption is around 350 μA/MHz in active mode and 1.5 μA in sleep mode. However, it's recommended to consult the datasheet and application notes for more detailed power consumption information.
Yes, the R5F10A6CKSP#W5 can be used with an external crystal oscillator. The microcontroller has an internal oscillator, but it can also be driven by an external crystal oscillator. Consult the datasheet and application notes for specific guidelines on using an external crystal oscillator.
To optimize the performance of the R5F10A6CKSP#W5, consider the following: 1) Optimize your code using the Renesas Compiler Package, 2) Use the most suitable clock frequency and peripheral settings, 3) Minimize power consumption by using low-power modes, and 4) Leverage the microcontroller's built-in peripherals and features. Consult the datasheet, application notes, and Renesas documentation for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F10A6CKSP#W5 Overview

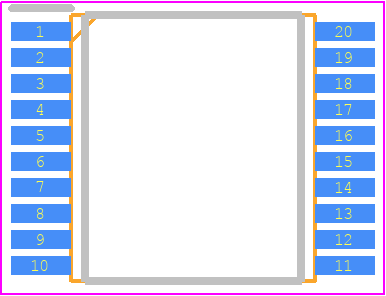

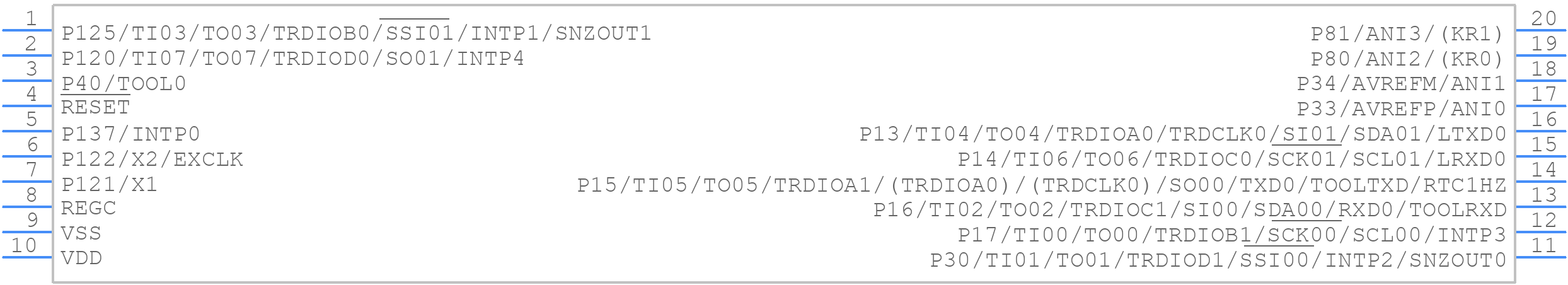

Use the download button to access the R5F10A6CKSP#W5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F10,
or try a keyword search, such as Microcontrollers
