Description:RL78/L12 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.60 μANote 2, internal voltage boost: 1.19 μA, and capacitive split: 0.68 µA. With a lineup of 32 to 64-pin products supporting up to 280 segments, these microcontrollers are perfect for s
Renesas provides a recommended PCB layout guide in their application notes and design guides. It's essential to follow these guidelines to minimize noise and ensure optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the microcontroller.
Renesas provides a Secure Firmware Update (SFU) solution that enables secure boot and firmware updates. This involves using a secure boot loader, encrypting firmware images, and implementing a secure communication protocol. Renesas also offers development tools and software libraries to support SFU implementation.
The R5F10RFCAFP#10 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow. Renesas provides thermal design guidelines and thermal models to help with thermal management.
To optimize power consumption, use the microcontroller's low-power modes, such as sleep and standby modes. Additionally, use power gating, clock gating, and voltage scaling to reduce energy usage. Renesas provides power consumption estimates and guidelines in their datasheet and application notes.
To ensure EMC and EMI compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Use a metal shield or a shielded enclosure to reduce EMI emissions. Additionally, implement filtering and decoupling to reduce noise and ensure signal integrity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F10RFCAFP#10 Overview

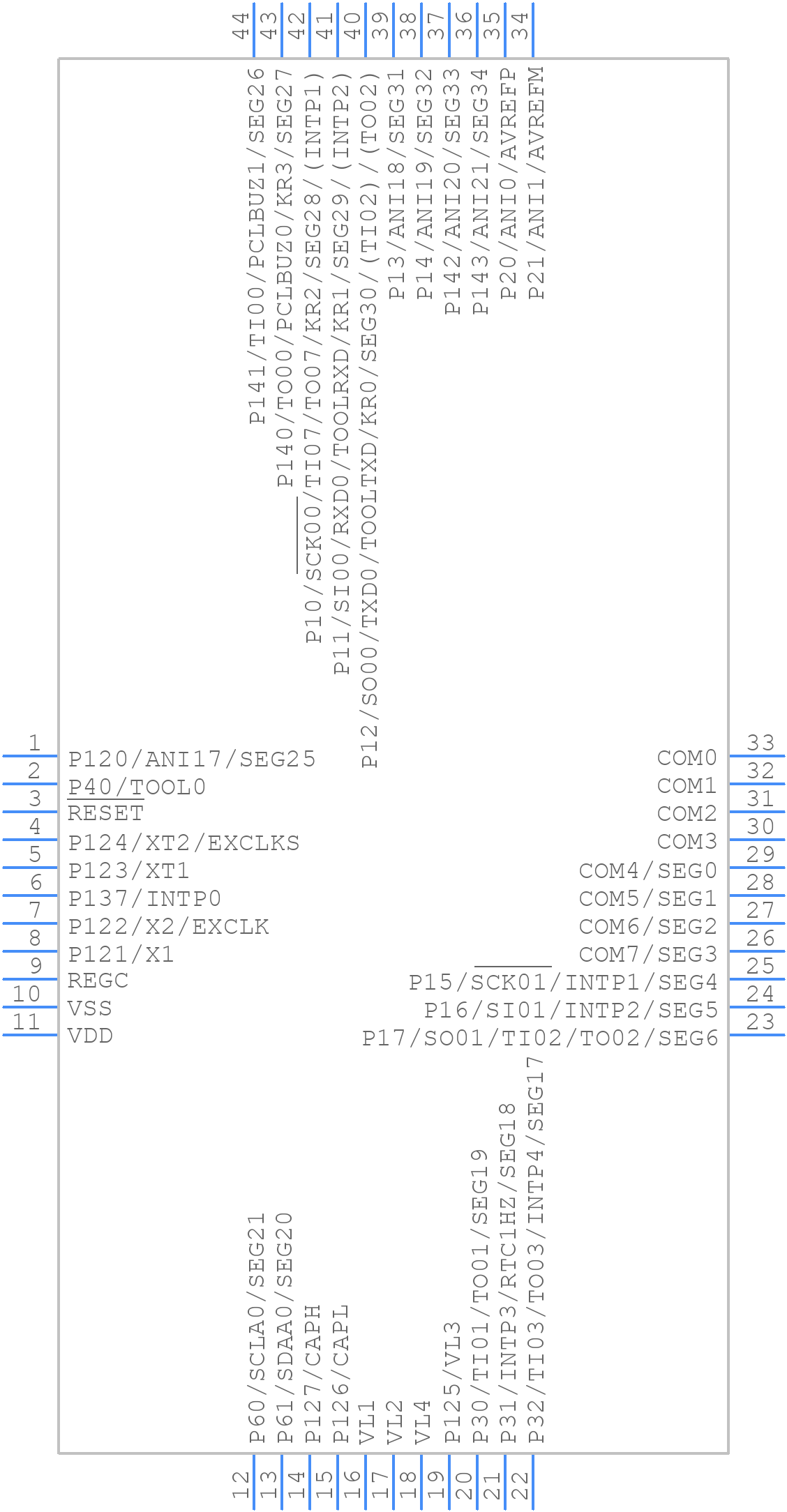

Use the download button to access the R5F10RFCAFP#10 schematic symbol, PCB footprint, and 3D model.
