R5F113GLCLFB#15 - Renesas Electronics

Description: RL78/F15 automotive microcontrollers employ the RL78 core, which realizes high processing performance while delivering the lowest power consumption in its class. A high-speed on-chip oscillator provides 32MHz CPU operation. An enhanced motor control functionality is offered by the motor control timer (Timer RD). For easy migration, RL78/F15 is pin and software upwards compatible with RL78/F14. The RL78/F15 Group even supports 125 ℃ (target) operation, whereby a CPU clock of 24 MHz can be reached. In additio

Download R5F113GLCLFB#15 Model

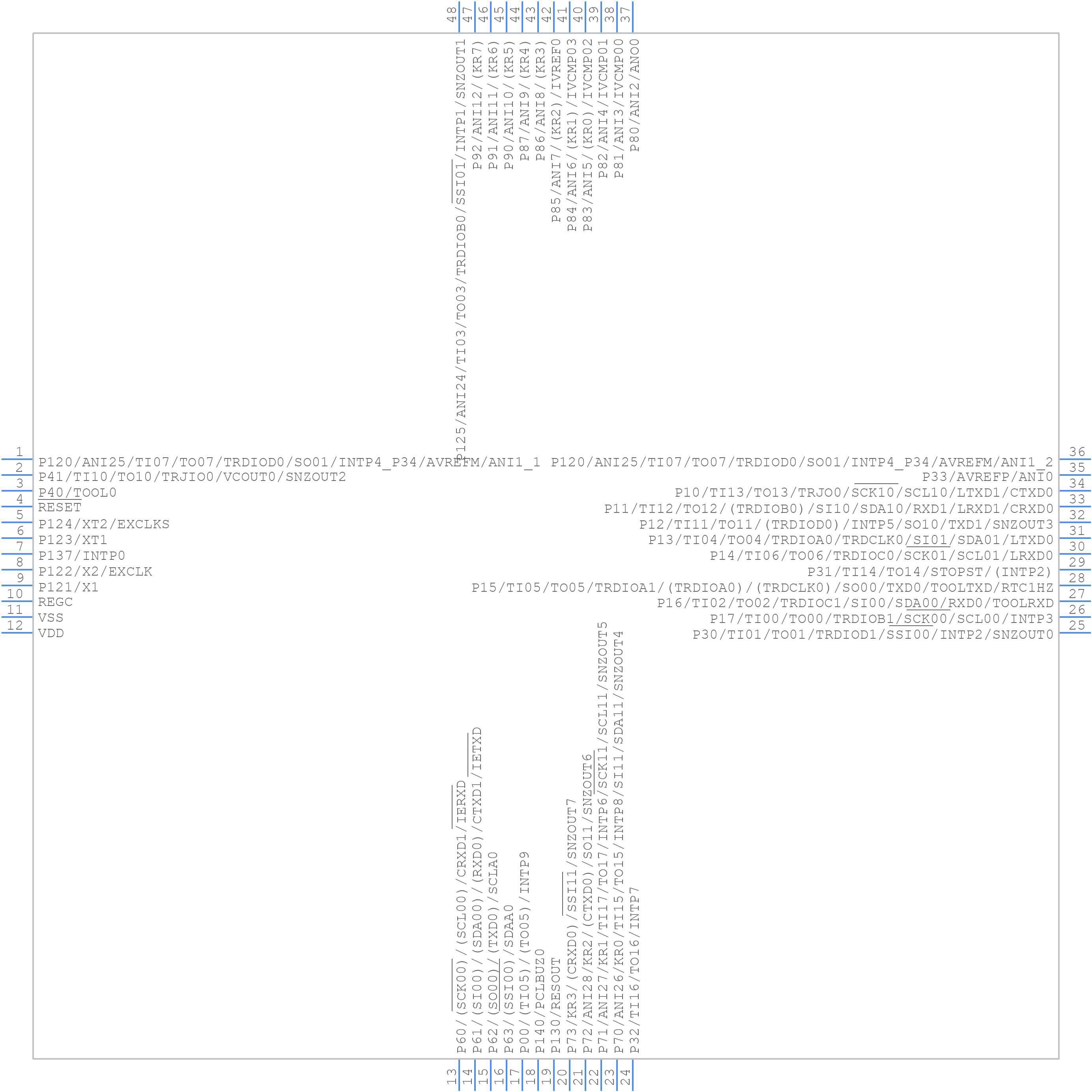

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F113GLCLFB#15 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin LQFP _1.60
click to zoom
3D Models
R5F113GLCLFB#15 - Renesas Electronics  - 3D model - Quad Flat Packages - 48-pin LQFP _1.60
click to zoom

R5F113GLCLFB#15 Details

  • Manufacturer Part Number:

    R5F113GLCLFB#15

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KF

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    44

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    48

  • Number of Timers:

    19

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    32768

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F113GLCLFB#15 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Frequency Register (CFR). The CCR sets the clock source and mode, while the CFR sets the clock frequency. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F113GLCLFB#15 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F113GLCLFB#15 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCSR). The WDT can be set to reset the device or generate an interrupt upon timeout. Refer to the user manual for specific register settings and values.
  • The recommended decoupling capacitor value for the R5F113GLCLFB#15 is 0.1 μF to 1 μF, depending on the specific application and operating frequency. A higher value capacitor may be required for high-frequency applications or to ensure stable power supply voltage.
