R5F11AGGANB#40 - Renesas Electronics

Description: RL78/G1D microcontrollers support Bluetooth® Low Energy and realized the lowest level of current consumption in the industry at 4.3 mA RF transmission current (0 dBm output) and 3.5 mA RF receiving current. Since circuit elements necessary for connecting an antenna are built in, not only does this simplify circuit design for the antenna connection, but it also helps reduce the cost of the end product because external parts are not needed. The RL78/G1D module contains the RL78/G1D, a 32 MHz crystal resonator

Download R5F11AGGANB#40 Model

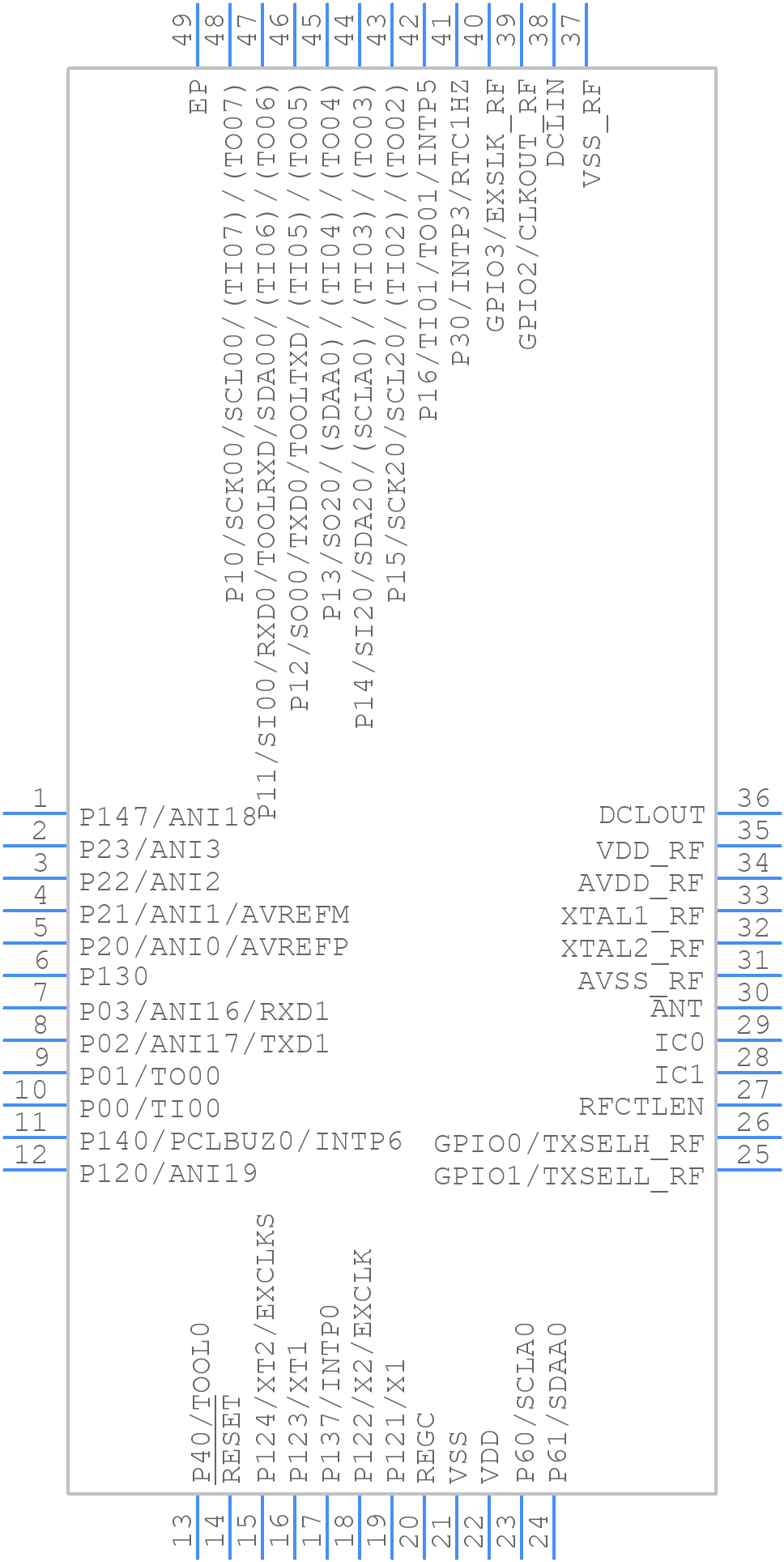

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F11AGGANB#40 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN-48-1
click to zoom
3D Models
R5F11AGGANB#40 - Renesas Electronics  - 3D model - Quad Flat No-Lead - WQFN-48-1
click to zoom

R5F11AGGANB#40 Details

  • Manufacturer Part Number:

    R5F11AGGANB#40

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    HWQFN

  • Package Description:

    WQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PWQN0048LA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Additional Feature:

    IT ASLO HAS 8-CH 8-BIT ADC

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    4

  • Number of I/O Lines:

    32

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    48

  • Number of Timers:

    2

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TAPE

  • RAM (bytes):

    12288

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F11AGGANB#40 Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the R5F11AGGANB#40 is 12 MHz.
  • The watchdog timer can be configured using the WDT control register (WDTCTL). Set the WDTCTL.WDTEN bit to enable the WDT, and adjust the WDT timeout period using the WDTCTL.WDTTP bits.
  • The maximum allowed voltage on the VCC pin is 3.6V. Exceeding this voltage may cause damage to the device.
  • The R5F11AGGANB#40 has a built-in UART module. Configure the UART control registers (UARTCTL, UARTBRG, and UARTFLG) to set the baud rate, data bits, and parity. Then, use the UART receive and transmit registers (UARTRX and UARTTX) to send and receive data.
  • The NMI pin is used to trigger a non-maskable interrupt, which has the highest priority among all interrupts. It is typically used for critical system events, such as a watchdog timer overflow or a power-on reset.
