Description:The R8C/M13B Group is supported only for customers who have already adopted these products. The RL78/G1F, RL78/G1G Groups are recommended for new designs.The R8C/M13B Group of single-chip microcontrollers (MCUs) incorporates the R8C CPU core, which provides sophisticated instructions for a high level of efficiency. With 1Mb of address space, the CPU core is capable of executing instructions at high speed. In addition, it features a multiplier for high-speed arithmetic processing.Power consumption is low, an
Renesas provides a recommended PCB layout guide in their application note 'R5F2M1 Series PCB Layout Guide' (document number: R01CL0005EJ0100). It includes guidelines for thermal vias, heat sinks, and component placement to ensure optimal thermal performance.
Renesas provides a Secure Boot and Firmware Encryption Guide (document number: R01CL0006EJ0100) that explains how to implement secure boot and firmware encryption using the R5F2M1 series' built-in security features, such as the Trusted Secure IP (TSIP) and the Advanced Encryption Standard (AES).
The internal oscillator has a typical frequency accuracy of ±1.5% at room temperature. To improve accuracy, you can use an external crystal oscillator or a ceramic resonator. Additionally, Renesas provides a calibration procedure in their application note 'R5F2M1 Series Internal Oscillator Calibration' (document number: R01CL0004EJ0100).
The R5F2M1 series has a built-in CAN interface that supports CAN 2.0A and 2.0B protocols. Renesas provides a CAN Interface User's Manual (document number: R01CL0003EJ0100) that explains how to use the CAN interface, including configuration, transmission, and reception. The limitations include a maximum data transfer rate of 1 Mbps and a maximum of 64 bytes of data per frame.
The R5F2M1 series has a typical power consumption of 350 μA/MHz in active mode and 1.5 μA in sleep mode. To optimize power consumption, you can use the microcontroller's power-saving modes, such as the sleep mode, stop mode, and low-power modes. Renesas provides a Power Consumption Characteristics document (document number: R01CL0002EJ0100) that provides detailed power consumption data and optimization techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F2M134BNFP#V0 Overview

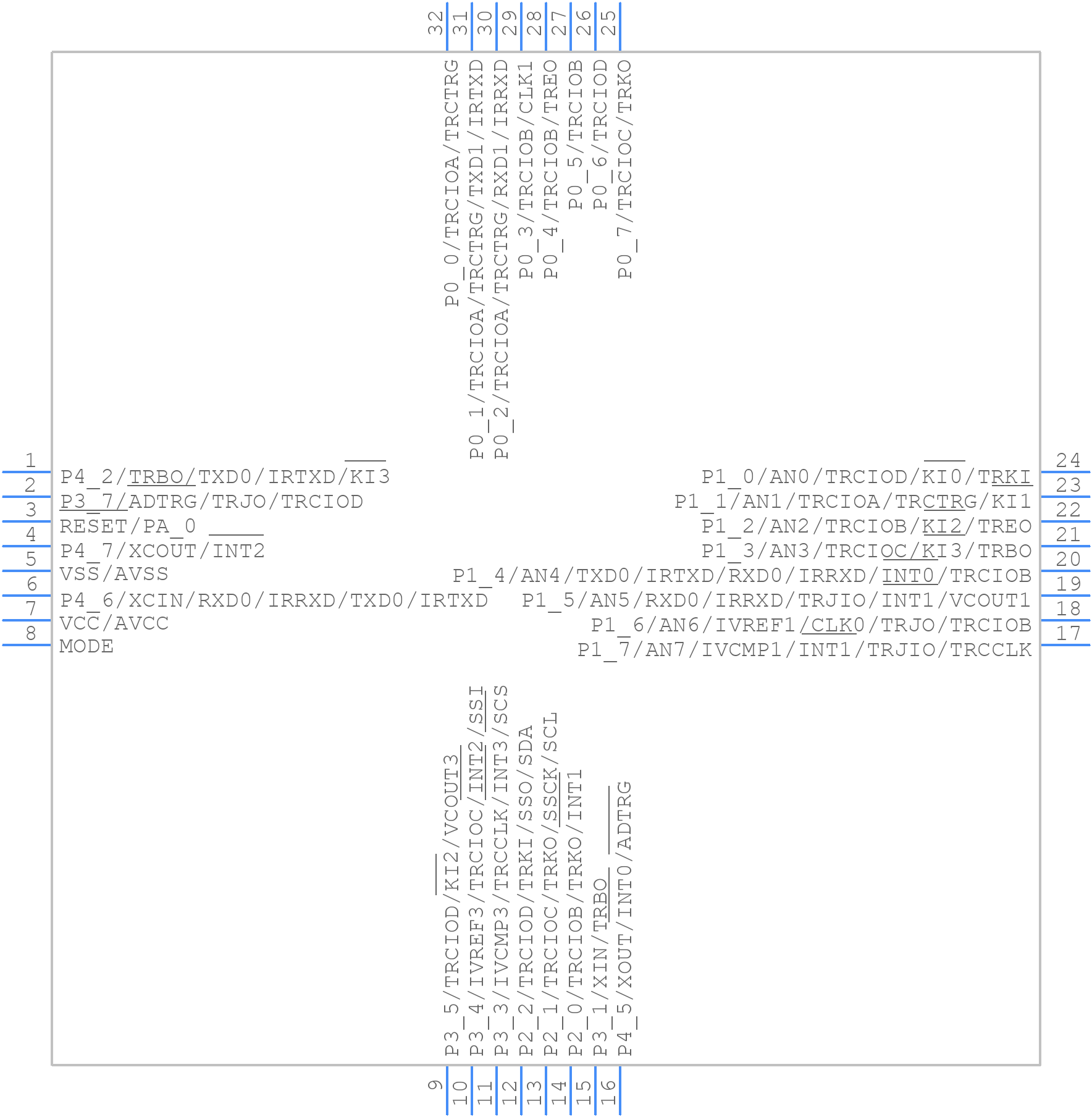

Use the download button to access the R5F2M134BNFP#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F2M,
or try a keyword search, such as Microcontrollers
