R5F51101ADNE#U0 - Renesas Electronics

Description: RX110 Group microcontrollers have the simplest lineup of the RX100 Series. They have a small-capacity, low pin count lineup from 8 KB/8 KB to 128 KB/16 KB ROM/RAM, and 36 to 64 pins. A 12-bit A/D converter, timer, serial interface, and more are built into a small 4 × 4 mm package. The RX110 is suitable for sensor hub and other applications where small size and processing performance are demanded.

Download R5F51101ADNE#U0 Model

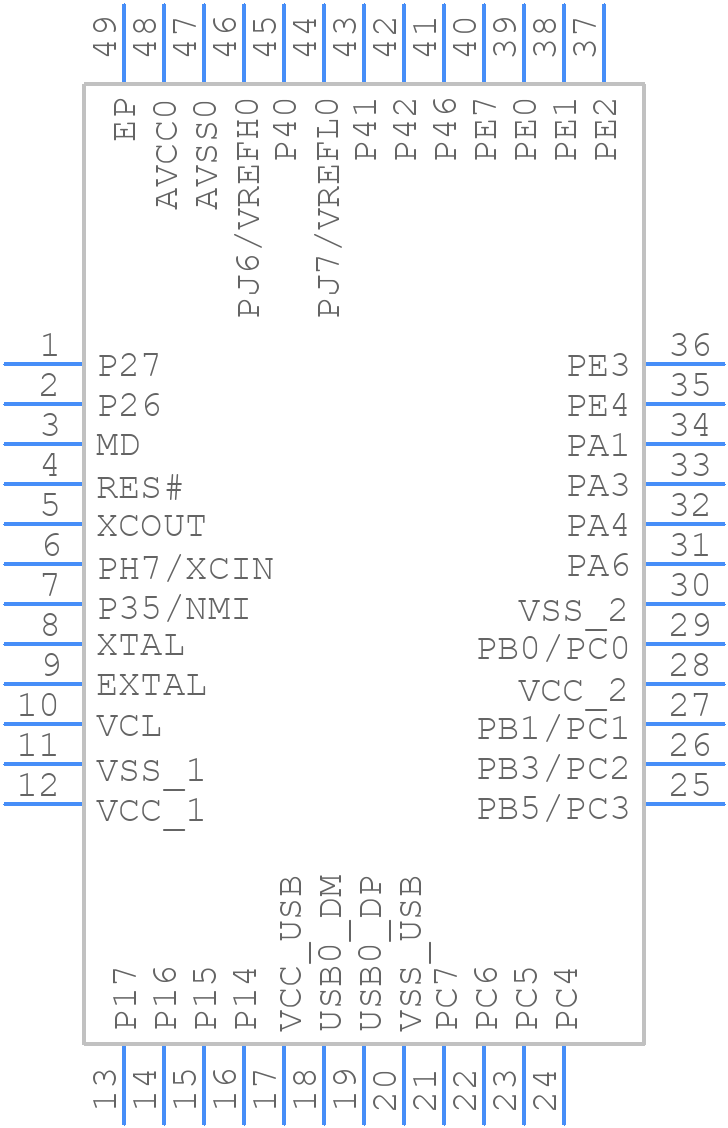

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F51101ADNE#U0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - R5F104GAANA#U0-
click to zoom
3D Models
R5F51101ADNE#U0 - Renesas Electronics  - 3D model - Quad Flat No-Lead - R5F104GAANA#U0-
click to zoom

R5F51101ADNE#U0 Details

  • Manufacturer Part Number:

    R5F51101ADNE#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HWQFN

  • Package Description:

    HWQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PWQN0048KB

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.4V SUPPLY AT 16MHZ AND 1.8V MIN SUPPLY AT 8MHZ

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RX110

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    36

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    10240

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    5.55 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    21.6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51101ADNE#U0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured through the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating frequency of the R5F51101ADNE#U0 is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
  • The R5F51101ADNE#U0 has a built-in watchdog timer (WDT) that can be enabled and configured through the Watchdog Timer Control Register (WTCR). The WDT can be used to reset the device in case of a software or hardware fault.
  • The NMI pin is used to generate a non-maskable interrupt, which can be used to signal a critical event or error condition to the processor. The NMI interrupt has the highest priority and cannot be masked or disabled.
