R5F51101ADNF#00 - Renesas Electronics

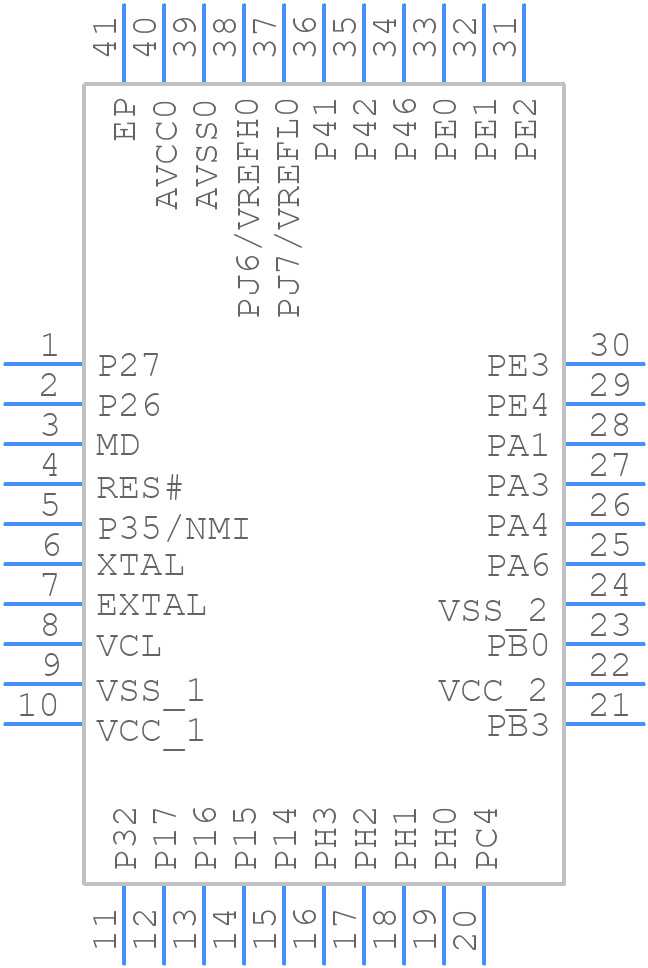

R5F51101ADNF#00 Details

• Manufacturer Part Number:

  R5F51101ADNF#00

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HWQFN-40

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.4V SUPPLY AT 16MHZ AND 1.8V MIN SUPPLY AT 8MHZ

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  RX110

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-N40

• Length:

  6 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  8

• Number of I/O Lines:

  29

• Number of Serial I/Os:

  3

• Number of Terminals:

  40

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40,.25SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  10240

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  4.55 mm

• Speed:

  32 MHz

• Supply Current-Max:

  21.6 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
