R5F51101AGNF#00 - Renesas Electronics

Description: RX110 Group microcontrollers have the simplest lineup of the RX100 Series. They have a small-capacity, low pin count lineup from 8 KB/8 KB to 128 KB/16 KB ROM/RAM, and 36 to 64 pins. A 12-bit A/D converter, timer, serial interface, and more are built into a small 4 × 4 mm package. The RX110 is suitable for sensor hub and other applications where small size and processing performance are demanded.

Download R5F51101AGNF#00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

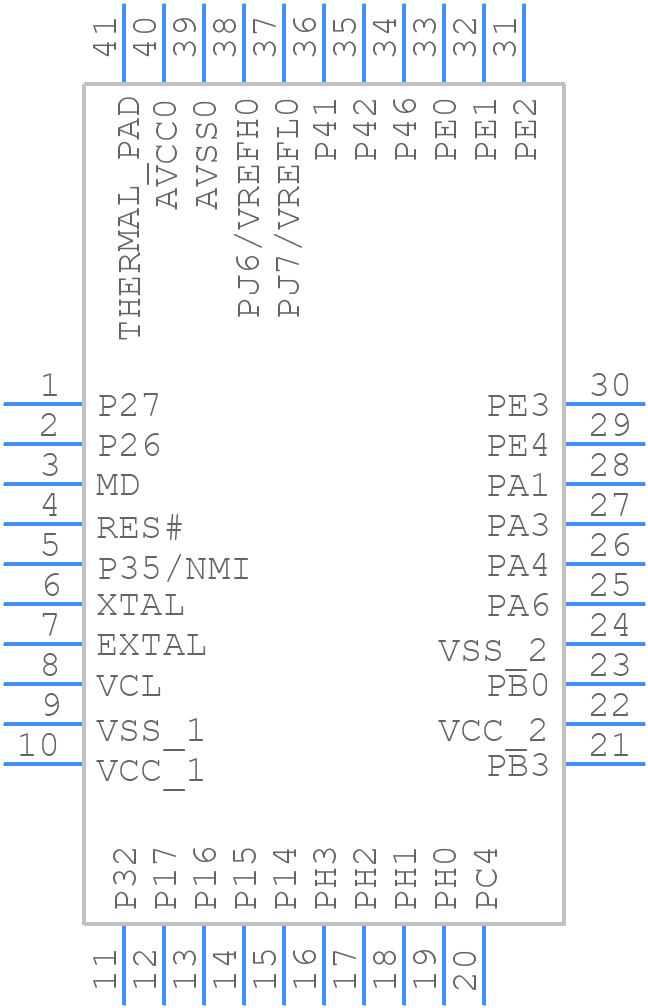

R5F51101AGNF#00 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F51101AGNF#00 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - P-HWQFN40-6x6-0.50+-+
click to zoom
3D Models
R5F51101AGNF#00 - Renesas Electronics - 3D model - Quad Flat No-Lead - P-HWQFN40-6x6-0.50+-+
click to zoom

R5F51101AGNF#00 Details

  • Manufacturer Part Number:

    R5F51101AGNF#00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51101AGNF#00 Overview

Use the download button to access the R5F51101AGNF#00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
