R5F51111ADFL#30 - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51111ADFL#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

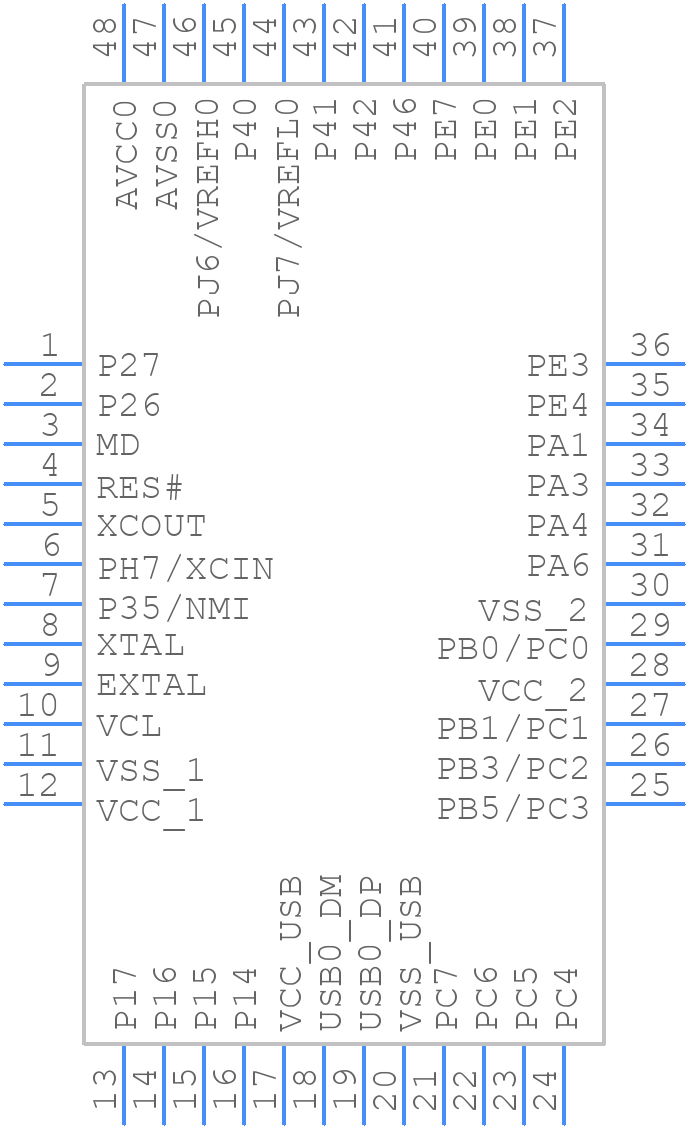

R5F51111ADFL#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F51111ADFL#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB
click to zoom
3D Models
R5F51111ADFL#30 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB
click to zoom

R5F51111ADFL#30 Details

  • Manufacturer Part Number:

    R5F51111ADFL#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    30

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • ROM (words):

    32768

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51111ADFL#30 Frequently Asked Questions (FAQs)

  • Renesas recommends using a 1 kΩ resistor and a 10 μF capacitor for the POR circuit to ensure reliable power-on reset operation.
  • The clock settings can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and clock configuration options.
  • The maximum operating frequency of the R5F51111ADFL#30 is 32 MHz, but it can be operated at lower frequencies depending on the application requirements.
  • The WDT can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the microcontroller in case of a software or hardware fault.
  • The ADC has a 10-bit resolution and can operate at a maximum sampling frequency of 500 kHz. The ADC also has a limited input voltage range of 0 to VCC, and the input impedance is around 10 kΩ.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51111ADFL#30 Overview

Use the download button to access the R5F51111ADFL#30 schematic symbol, PCB footprint, and 3D model.
