R5F51113ADNF#2A - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51113ADNF#2A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

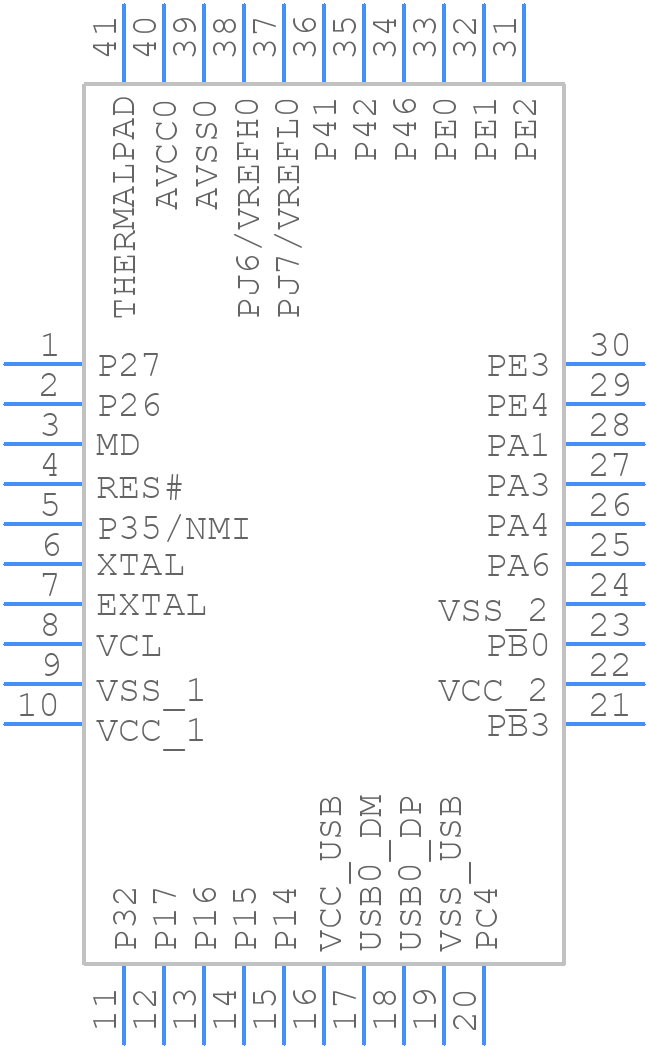

R5F51113ADNF#2A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F51113ADNF#2A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0040KC-A_2021
click to zoom
3D Models
R5F51113ADNF#2A - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0040KC-A_2021
click to zoom

R5F51113ADNF#2A Details

  • Manufacturer Part Number:

    R5F51113ADNF#2A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51113ADNF#2A Frequently Asked Questions (FAQs)

  • Renesas recommends using a POR circuit with a capacitor value between 10nF to 100nF and a resistor value between 1kΩ to 10kΩ to ensure reliable power-on reset operation.
  • The clock settings can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the user manual for detailed instructions and register descriptions.
  • The maximum operating frequency of the R5F51113ADNF#2A is 32 MHz, but it can be operated at lower frequencies depending on the application requirements.
  • The WDT can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the microcontroller in case of a software fault or hang-up.
  • The built-in flash memory can be used to store program code, data, and configuration settings. It can also be used to implement bootloaders and firmware updates.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51113ADNF#2A Overview

Use the download button to access the R5F51113ADNF#2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
