R5F51113AGNF#2A - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51113AGNF#2A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

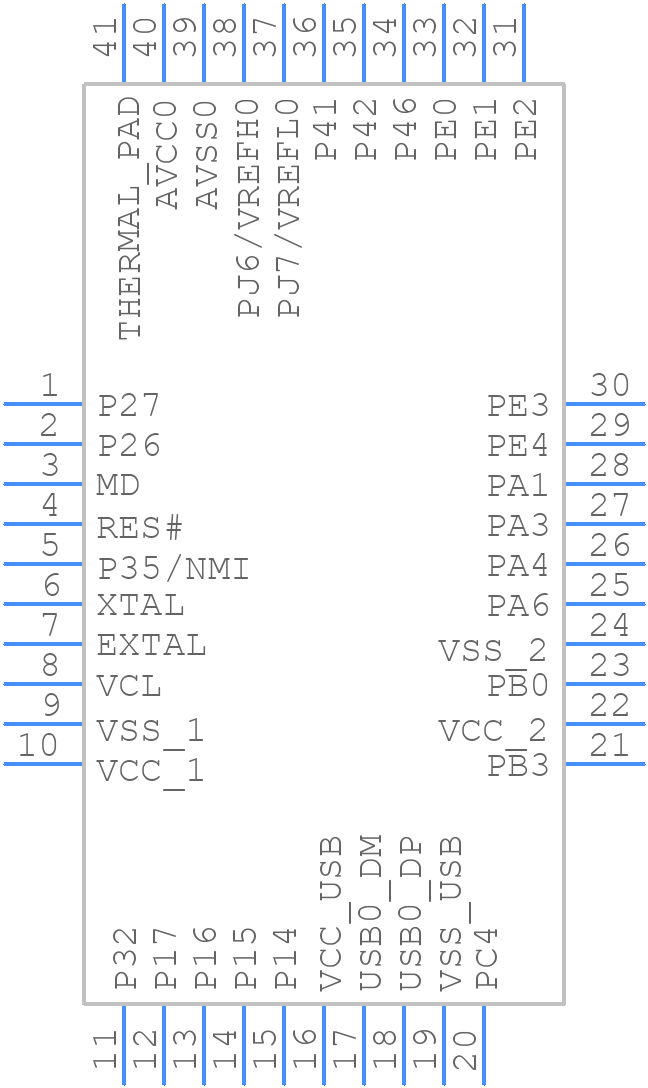

R5F51113AGNF#2A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F51113AGNF#2A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0040KC-A_2021
click to zoom
3D Models
R5F51113AGNF#2A - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0040KC-A_2021
click to zoom

R5F51113AGNF#2A Details

  • Manufacturer Part Number:

    R5F51113AGNF#2A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51113AGNF#2A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for R5F51113AGNF#2A is 2.7V to 3.6V.
  • The clock settings for R5F51113AGNF#2A can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for detailed instructions.
  • The maximum operating frequency of R5F51113AGNF#2A is 32 MHz.
  • R5F51113AGNF#2A has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Register (PMR) and the Low-Power Mode Control Register (LPMCR). Refer to the user manual for detailed instructions.
  • The maximum current consumption of R5F51113AGNF#2A is approximately 15 mA at 32 MHz operating frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51113AGNF#2A Overview

Use the download button to access the R5F51113AGNF#2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
