R5F513T5ADFL#30 - Renesas Electronics

Description: The RX13T Group of microcontrollers is equipped with the proven RX Family RXv1 core operating at 32MHz, a floating point unit (FPU), an inverter control timer, and a 12-bit A/D converter, allowing high-efficiency inverter control of brushless DC motors with one device. They are highly compatible with existing RX devices so it is easy to convert hardware and software from previous designs. The lineup includes small 32-pin and 48-pin packages with built-in features such as programmable gain amplifier (PGA), c

Download R5F513T5ADFL#30 Model

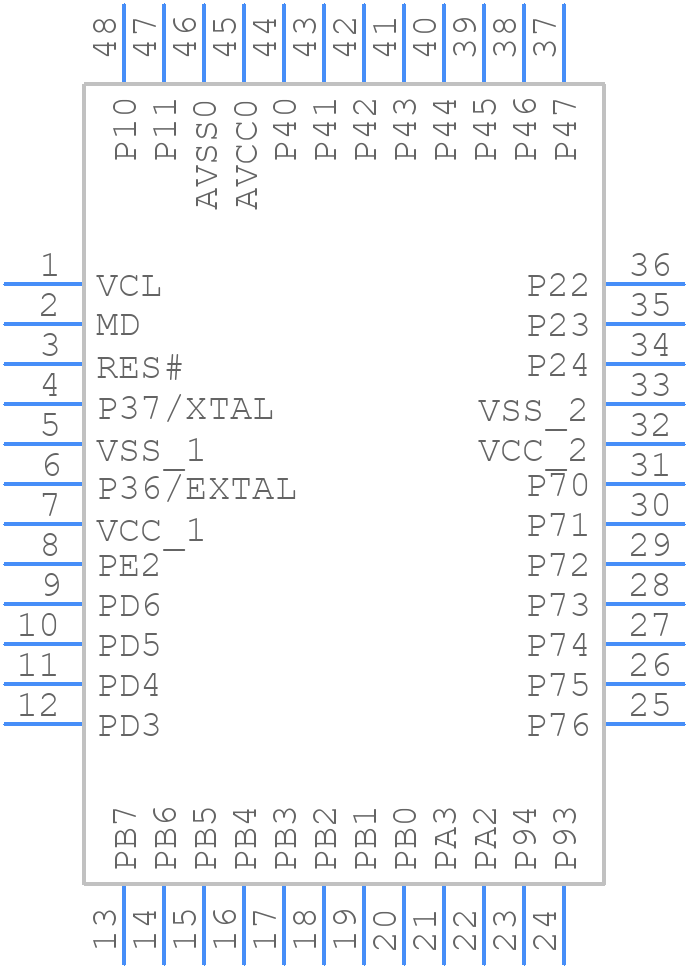

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

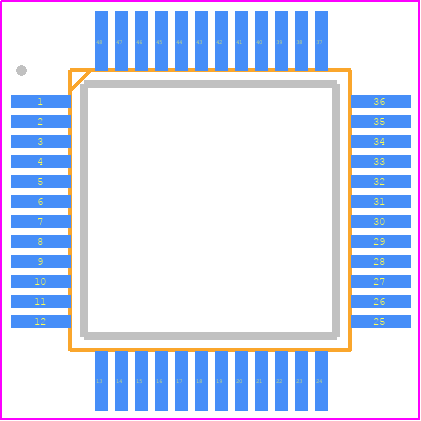

R5F513T5ADFL#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-B
click to zoom
3D Models
R5F513T5ADFL#30 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0048KB-B
click to zoom

R5F513T5ADFL#30 Details

  • Manufacturer Part Number:

    R5F513T5ADFL#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Package Description:

    LFQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RX13T

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    39

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • RAM (bytes):

    12288

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F513T5ADFL#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • To optimize power consumption, use the low-power modes (e.g., sleep, standby, and stop modes) whenever possible. Also, adjust the clock frequency, disable unused peripherals, and use the internal voltage regulators to reduce power consumption.
  • The maximum operating temperature range for the R5F513T5ADFL#30 is -40°C to +125°C. However, the device can operate at a reduced frequency and voltage above 85°C.
  • The JTAG interface on the R5F513T5ADFL#30 is used for debugging and programming. To handle it, ensure that the JTAG pins are properly connected, and use a JTAG adapter or debugger that supports the device's JTAG protocol.
  • When designing a PCB with the R5F513T5ADFL#30, ensure that the power supply lines are decoupled, and the clock signal is routed carefully to minimize noise and jitter. Also, follow the recommended layout guidelines for the device's pins and packages.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F513T5ADFL#30 Overview

Use the download button to access the R5F513T5ADFL#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
