R5F51403ADNH#30 - Renesas Electronics

Description: The RX140 microcontrollers in the RX100 series combine the highest processing performance and low supply current. This makes them suitable for a wide range of applications such as home appliances, industrial applications and building automation. The RX140 with an RXv2 core achieves a 48MHz maximum operating frequency, with about twice the performance of the previous RX130 operating at 32MHz. In addition, power consumption is reduced by more than 30% compared to the RX130 with 56μA/MHz during CPU operation a

Download R5F51403ADNH#30 Model

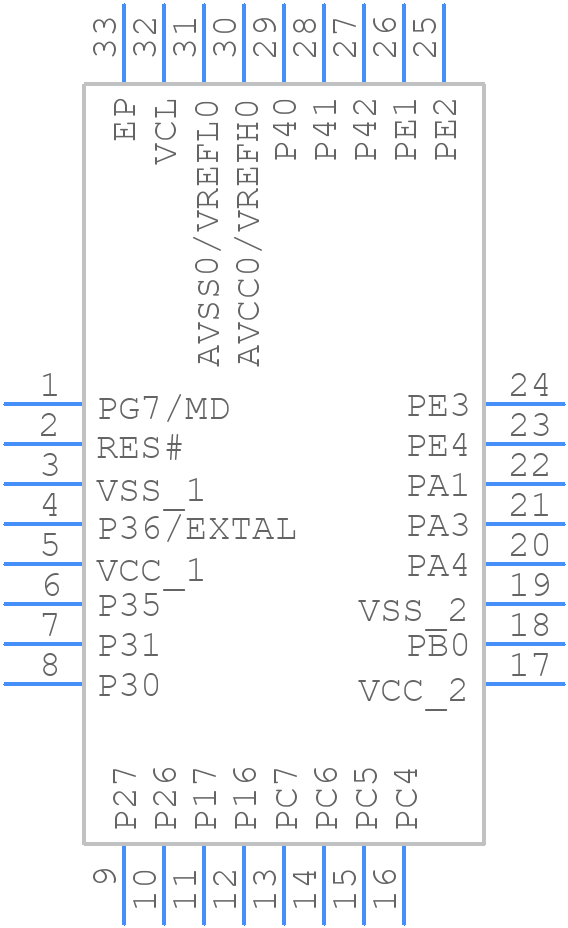

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F51403ADNH#30 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0032KE-A
click to zoom
3D Models
R5F51403ADNH#30 - Renesas Electronics  - 3D model - Quad Flat No-Lead - PWQN0032KE-A
click to zoom

R5F51403ADNH#30 Details

  • Manufacturer Part Number:

    R5F51403ADNH#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    HWQFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    PWQN0032KE

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    12

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RXV2

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    24

  • Number of Serial I/Os:

    5

  • Number of Terminals:

    32

  • Number of Timers:

    13

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    16384

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    48 MHz

  • Supply Current-Max:

    20.1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
