R5F514T5AMFJ#10 footprint, schematic symbol and 3D model by Renesas Electronics

R5F514T5AMFJ#10 - Renesas Electronics

Description: The RX14T is an entry-level motor control microcontroller (MCU) featuring a 48MHz RXv2 core that delivers an excellent balance of performance, functionality, and cost. Designed for home appliances and industrial equipment, the RX14T provides robust 5V operation with outstanding noise immunity, making it highly reliable in electrically noisy environments. With integrated inverter control timers, high-speed on-chip oscillator (HOCO), 2 units of 12-bit analog-to-digital converter (ADC), single-ended programmab

Download R5F514T5AMFJ#10 Model

Schematic
symbols

PCB
footprints

3D
models

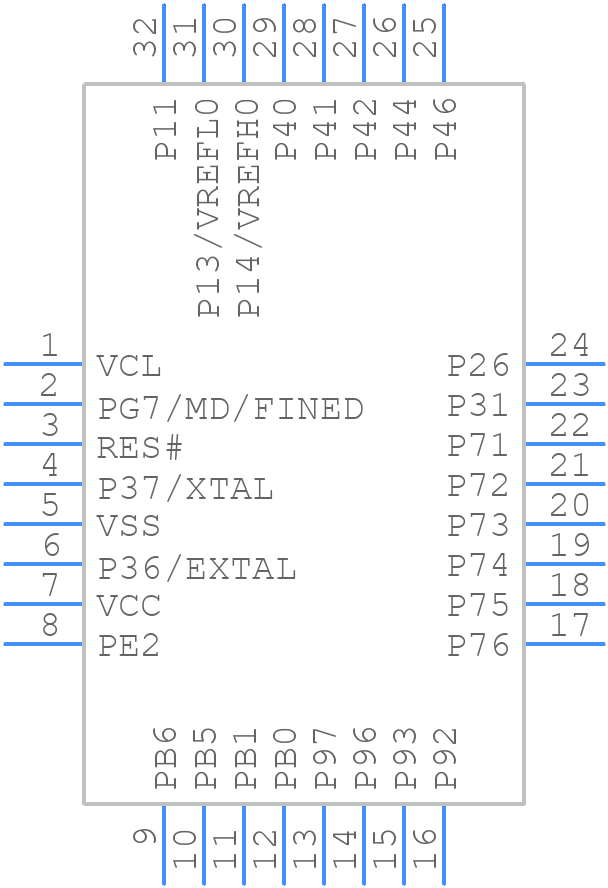

Symbol

click to zoom

PCB Footprints

R5F514T5AMFJ#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0032GB-A

click to zoom

3D Models

R5F514T5AMFJ#10 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0032GB-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R5F514T5AMFJ#10
Part Number R5F514T5AMFJ#10
Manufacturer Renesas Electronics
Pin Count 32
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - PLQP0032GB-A
Released Date Apr 10, 2026
Last Modified Date Apr 10, 2026 3:26 AM UTC
Pinout / Pin List Click Here (Member Only)

R5F514T5AMFJ#10 Details

Manufacturer Part Number:
R5F514T5AMFJ#10
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R5F514T5AMFJ#10 Overview

Use the download button to access the R5F514T5AMFJ#10 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
