R5F52105BDFN#30 - Renesas Electronics

Description: The RX210 Group has a wide operating voltage range of 1.62 V to 5.5 V and can execute calculations at 78 DMIPS (Dhrystone million instructions per second) at up to 50 MHz high-speed operation. Furthermore, it achieves 0.2 mA/MHz low power performance when operating at 50 MHz. Consumption current in deep software standby mode is a mere 0.45 µA. A wide lineup of 48 KB to 1 MB ROM and 48-pin to 145-pin products is available.

Download R5F52105BDFN#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

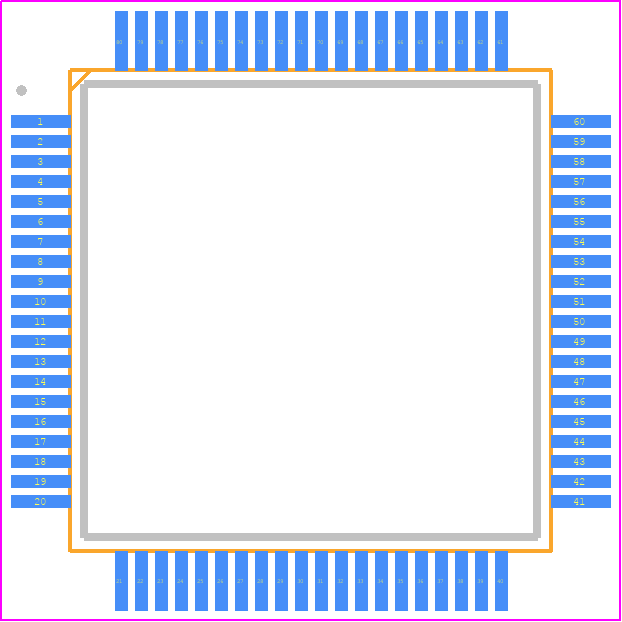

R5F52105BDFN#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080KB-A
click to zoom
3D Models
R5F52105BDFN#30 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0080KB-A
click to zoom

R5F52105BDFN#30 Details

  • Manufacturer Part Number:

    R5F52105BDFN#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080KB

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES 1.62 V MINIMUM SUPPLY AT 20 MHZ

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RX210

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    64

  • Number of Serial I/Os:

    7

  • Number of Terminals:

    80

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP80,.55SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    20480

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    50 MHz

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F52105BDFN#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating frequency of the R5F52105BDFN#30 is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
  • The ADC on the R5F52105BDFN#30 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADDR). The ADCCR allows you to select the ADC channel, set the conversion mode, and trigger the conversion. The ADDR holds the converted data.
  • The VCCIO pin is the power supply pin for the I/O circuits. It is used to power the I/O pads and should be connected to a power supply voltage between 1.8V and 3.6V.
