R5F52107CDFN#30 - Renesas Electronics

Description: The RX210 Group has a wide operating voltage range of 1.62 V to 5.5 V and can execute calculations at 78 DMIPS (Dhrystone million instructions per second) at up to 50 MHz high-speed operation. Furthermore, it achieves 0.2 mA/MHz low power performance when operating at 50 MHz. Consumption current in deep software standby mode is a mere 0.45 µA. A wide lineup of 48 KB to 1 MB ROM and 48-pin to 145-pin products is available.

Download R5F52107CDFN#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

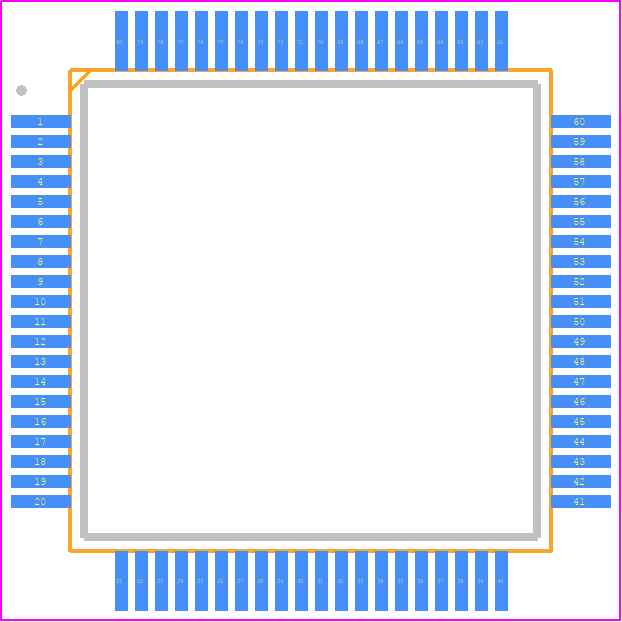

R5F52107CDFN#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0080KB-A
click to zoom
3D Models
R5F52107CDFN#30 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0080KB-A
click to zoom

R5F52107CDFN#30 Details

  • Manufacturer Part Number:

    R5F52107CDFN#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Pin Count:

    80

  • Manufacturer Package Code:

    PLQP0080KB

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Package Code:

    LFQFP

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F52107CDFN#30 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R5F52107CDFN#30 is 2.7V to 3.6V, with a typical voltage of 3.3V.
  • The clock settings for the R5F52107CDFN#30 can be configured using the Clock Generator Unit (CGU) registers. The CGU provides a flexible clock generation system that allows the user to select from various clock sources, including the internal high-speed oscillator, external clock, and PLL.
  • The maximum frequency of the R5F52107CDFN#30 is 32 MHz, which can be achieved using the internal high-speed oscillator or an external clock source.
  • The ADC on the R5F52107CDFN#30 is a 10-bit successive approximation ADC that can be used to convert analog signals to digital values. The ADC can be configured using the ADC registers, and the conversion result can be read from the ADC data register.
  • The watchdog timer on the R5F52107CDFN#30 is a safety feature that can be used to reset the microcontroller in case of a software fault or hang-up. The watchdog timer can be configured to generate a reset signal if the timer is not cleared within a specified time period.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F52107CDFN#30 Overview

Use the download button to access the R5F52107CDFN#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F52, or try a keyword search, such as Microcontrollers

Parts related to R5F52107CDFN#30

Showing 0 results

R5F52107CDFN#30 Alternates

Showing results

Image Part Number Model
Part Image R5F52107CDFN#10 Renesas Electronics Corporation

Microcontroller, 32-Bit, FLASH, RX210 CPU, 50MHz, CMOS, PQFP80

Part Image R5F52107CDFN Renesas Electronics Corporation

Microcontroller, 32-Bit, FLASH, RX210 CPU, 50MHz, CMOS, PQFP80

Part Image R5F52107CDFN#V0 Renesas Electronics Corporation

Microcontroller, 32-Bit, FLASH, RX210 CPU, 50MHz, CMOS, PQFP80

Part Image R5F52107CGFN#30 Renesas Electronics Corporation

Microcontroller, CMOS
