R5F52205BDFL#V0 - Renesas Electronics

Description: The RX220 Group of products is the slimmed-down version of the higher model RX210 Group, and has very high compatibilility in terms of pin arrangement and on the software level.

Download R5F52205BDFL#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

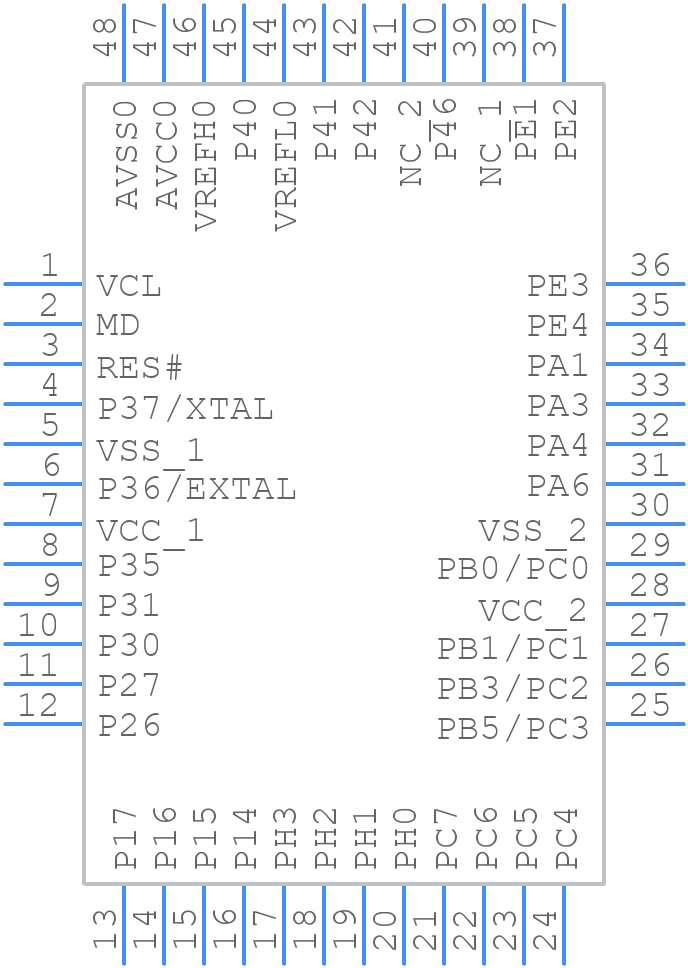

R5F52205BDFL#V0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

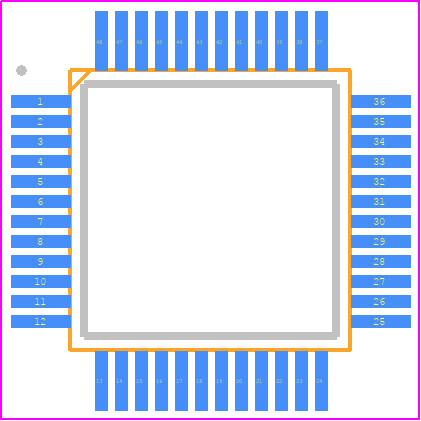

R5F52205BDFL#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-A
click to zoom
3D Models
R5F52205BDFL#V0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB-A
click to zoom

R5F52205BDFL#V0 Details

  • Manufacturer Part Number:

    R5F52205BDFL#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Package Code:

    LFQFP

  • ROM (words):

    131072

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F52205BDFL#V0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R5F52205BDFL#V0 is 2.7V to 3.6V, with a typical voltage of 3.3V.
  • The clock settings for the R5F52205BDFL#V0 can be configured using the Clock Generator Unit (CGU) registers. Refer to the Renesas documentation and application notes for specific configuration examples.
  • The maximum frequency of the R5F52205BDFL#V0 is 32 MHz, but it can be operated at lower frequencies depending on the application requirements.
  • The built-in ADC on the R5F52205BDFL#V0 can be used by configuring the ADC registers and enabling the ADC clock. Refer to the Renesas documentation and application notes for specific examples and configuration details.
  • The VBAT pin on the R5F52205BDFL#V0 is used to connect a battery or a power source for the internal real-time clock (RTC) and the backup registers. This allows the RTC and backup registers to maintain their data even when the main power supply is turned off.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F52205BDFL#V0 Overview

Use the download button to access the R5F52205BDFL#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F52, or try a keyword search, such as Microcontrollers
