R5F523W7ADBL#20 - Renesas Electronics

Description: RX23W microcontrollers incorporate security functions that are vital for Bluetooth® 5.0 Low Energy (LE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long-range and mesh networking, and provide excellent reception performance.In addition, the RX23W lineup includes a module with a built-in antenna and oscillator

Download R5F523W7ADBL#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F523W7ADBL#20 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

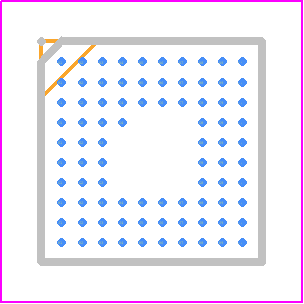

R5F523W7ADBL#20 - Renesas Electronics PCB footprint - BGA - BGA - PTBG0085KB-A-2
click to zoom
3D Models
R5F523W7ADBL#20 - Renesas Electronics - 3D model - BGA - PTBG0085KB-A-2
click to zoom

R5F523W7ADBL#20 Details

  • Manufacturer Part Number:

    R5F523W7ADBL#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TFBGA

  • Pin Count:

    85

  • Manufacturer Package Code:

    PTBG0085KB

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
