Description:Like the RX62T Group, the high performance (max. 100 MHz) of this microcontroller makes it ideal for motor control. On-chip functions include multifunction timers (MTU3 and GPT) that facilitate motor control, a high-speed 12-bit A/D converter, and a 10-bit A/D converter.
The recommended operating temperature range for the R5F563TEDDFA#V0 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
The clock settings for the R5F563TEDDFA#V0 can be configured using the Clock Generator Unit (CGU) registers. The CGU provides a flexible clock tree that allows you to generate various clock frequencies for the CPU, peripherals, and external clocks. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed configuration guidelines.
The maximum current consumption of the R5F563TEDDFA#V0 depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is approximately 350 mA at 3.3 V and 200 MHz operating frequency. However, this value can vary depending on the specific application and usage scenario.
The R5F563TEDDFA#V0 has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot, you need to generate a secure boot key, create a secure boot header, and configure the boot mode. Refer to the Renesas Electronics Corporation's secure boot application notes and the datasheet for detailed implementation guidelines.
Renesas Electronics Corporation provides a range of development tools and software for the R5F563TEDDFA#V0, including the e² studio integrated development environment (IDE), the CS+ integrated development environment, and the Renesas Compiler Package (RCP). Additionally, third-party tools and software, such as IAR Embedded Workbench and Keil µVision, are also available.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F563TEDDFA#V0 Overview

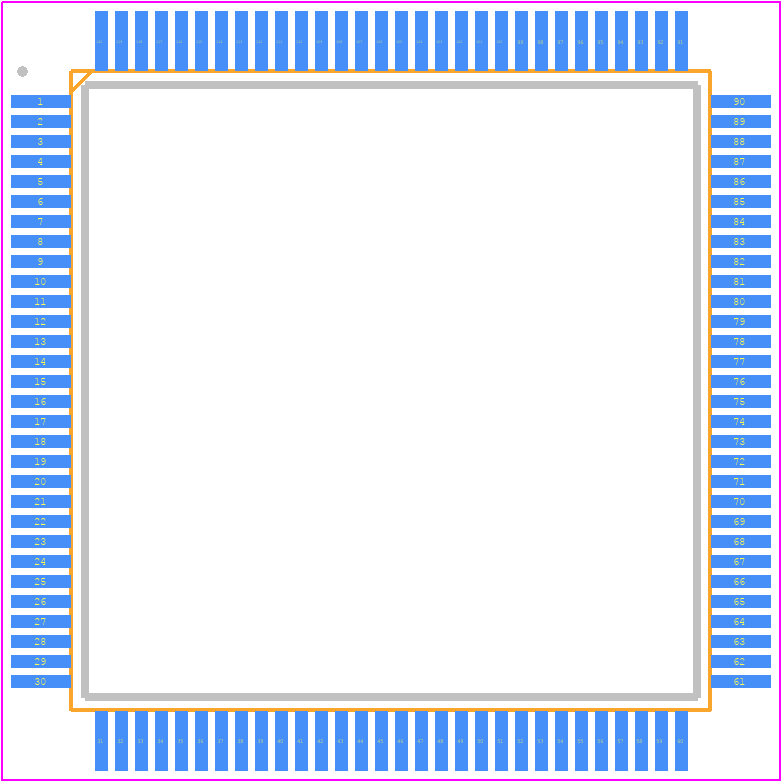

Use the download button to access the R5F563TEDDFA#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F56,
or try a keyword search, such as Microcontrollers
