R5F566NNDDBD#20 - Renesas Electronics

Description: The RX66N Group microcontrollers feature flash memory that can be read with zero wait states from the CPU, delivering superior real-time performance. They are equipped with the third-generation RX CPU core, the RXv3 core, and these high-performance products operate at 120MHz. Real-time control and networking of equipment are realized with a single chip with 4MB flash memory capable of read operations at 120MHz, 1MB of SRAM and 182 general-purpose I/O ports. The device also supports high-end HMI functionalit

Download R5F566NNDDBD#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

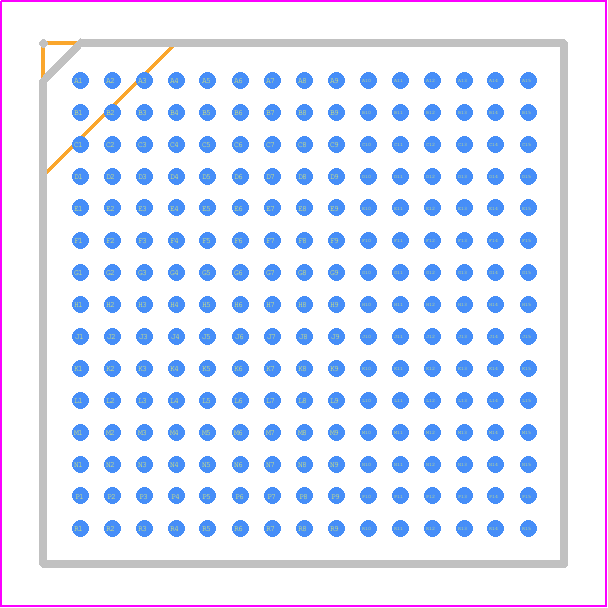

R5F566NNDDBD#20 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0224GA-A_2021
click to zoom
3D Models
R5F566NNDDBD#20 - Renesas Electronics  - 3D model - BGA - PLBG0224GA-A_2021
click to zoom

R5F566NNDDBD#20 Details

  • Manufacturer Part Number:

    R5F566NNDDBD#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFBGA

  • Package Description:

    LFBGA-224

  • Pin Count:

    224

  • Manufacturer Package Code:

    PLBG0224GA

  • Country Of Origin:

    Japan

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    12

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RXV3

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PBGA-B224

  • Length:

    13 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    183

  • Number of Serial I/Os:

    13

  • Number of Terminals:

    224

  • Number of Timers:

    32

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA224,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    1048576

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    120 MHz

  • Supply Current-Max:

    211 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F566NNDDBD#20 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Frequency Register (CFR). Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F566NNDDBD#20 is -40°C to 125°C. However, it's recommended to operate within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The R5F566NNDDBD#20 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The watchdog timer can be used to reset the device in case of a software or hardware fault.
  • Renesas provides a recommended layout and routing guidelines document that includes information on pin placement, signal routing, and power supply decoupling. It's essential to follow these guidelines to ensure signal integrity and minimize electromagnetic interference (EMI).
