R5F572MDDDBD#20 - Renesas Electronics

Description: The RX72M Group microcontrollers are high performance products operating at 240 MHz with RX's 3rd generation CPU core "RXv3 core". Double-precision floating-point processing instructions can significantly improve processing power. It incorporates an EtherCAT slave controller and realizes a system configuration that requires a dedicated controller on a single chip, contributing to a reduction in the number of parts and space saving.

Download R5F572MDDDBD#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F572MDDDBD#20 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

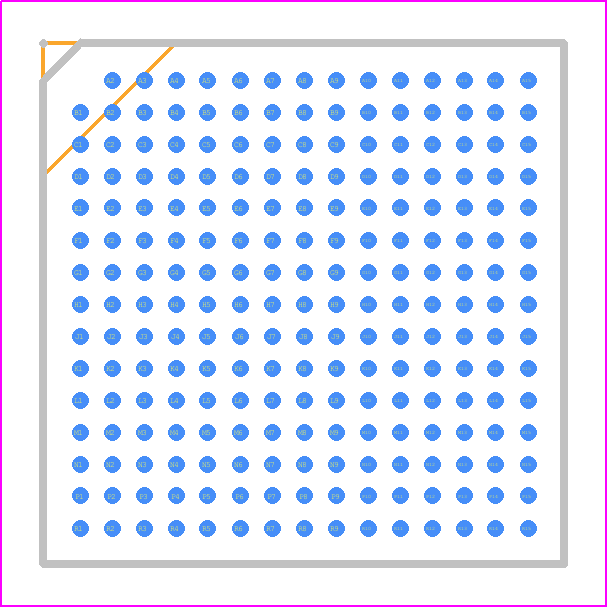

R5F572MDDDBD#20 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0224GA-A-+-
click to zoom
3D Models
R5F572MDDDBD#20 - Renesas Electronics - 3D model - BGA - PLBG0224GA-A-+-
click to zoom

R5F572MDDDBD#20 Details

  • Manufacturer Part Number:

    R5F572MDDDBD#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFBGA

  • Pin Count:

    224

  • Manufacturer Package Code:

    PLBG0224GA

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Address Bus Width:

    27

  • Bit Size:

    32

  • Clock Frequency-Max:

    24 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Length:

    13 mm

  • Number of I/O Lines:

    182

  • Number of Terminals:

    224

  • PWM Channels:

    YES

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Speed:

    240 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F572MDDDBD#20 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the clock signal (CLK). This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured through the Clock Control Register (CCR) and the PLL Control Register (PCR). Refer to the user manual for detailed information on clock configuration and settings.
  • The maximum operating temperature range for the R5F572MDDDBD#20 is -40°C to +125°C. However, it's recommended to operate the device within the range of -20°C to +85°C for optimal performance and reliability.
  • The R5F572MDDDBD#20 has a built-in watchdog timer (WDT) that can be enabled and configured through the Watchdog Timer Control Register (WTCR). The WDT can be used to reset the device in case of a software or hardware fault.
  • The maximum current consumption of the R5F572MDDDBD#20 depends on the operating frequency, voltage, and other factors. Refer to the datasheet for detailed information on current consumption and power dissipation.
