R5F572MNHDBD#20 - Renesas Electronics

Description: The RX72M Group microcontrollers are high performance products operating at 240 MHz with RX's 3rd generation CPU core "RXv3 core". Double-precision floating-point processing instructions can significantly improve processing power. It incorporates an EtherCAT slave controller and realizes a system configuration that requires a dedicated controller on a single chip, contributing to a reduction in the number of parts and space saving.

Download R5F572MNHDBD#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F572MNHDBD#20 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

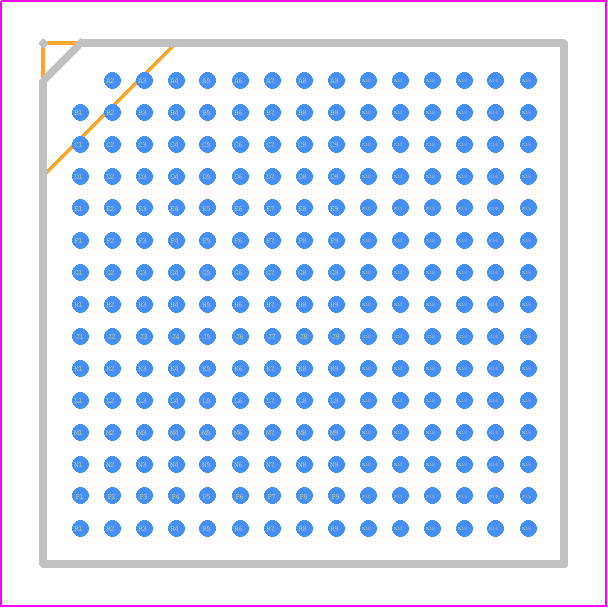

R5F572MNHDBD#20 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0224GA-A
click to zoom
3D Models
R5F572MNHDBD#20 - Renesas Electronics - 3D model - BGA - PLBG0224GA-A
click to zoom

R5F572MNHDBD#20 Details

  • Manufacturer Part Number:

    R5F572MNHDBD#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFBGA

  • Pin Count:

    224

  • Manufacturer Package Code:

    PLBG0224GA

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F572MNHDBD#20 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VCC, then VCCIO, and finally reset (RST) signal. This ensures proper initialization of the device.
  • The clock settings can be configured using the Clock Control Register (CKCR). The register allows selection of clock sources, division ratios, and clock enable/disable. Refer to the user manual for detailed information.
  • The maximum operating temperature range for the R5F572MNHDBD#20 is -40°C to +85°C. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
  • The R5F572MNHDBD#20 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the device in case of a software fault or hang-up.
  • The maximum current consumption of the R5F572MNHDBD#20 depends on the operating frequency, voltage, and peripheral usage. Refer to the datasheet for detailed current consumption characteristics.
