R5F572NNDDBD#20 - Renesas Electronics

Description: The RX72N Group microcontrollers are equipped with the third-generation RX CPU core, the RXv3 core, and these high-performance products operate at 240MHz. Real-time control and networking of equipment are realized with a single chip with 4MB flash memory capable of read operations at 120MHz, 1MB of SRAM and 182 general-purpose I/O ports. The device also supports high-end HMI functionality for advanced display capability. The device also has complete security capability, vital for industrial and consumer equ

Download R5F572NNDDBD#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

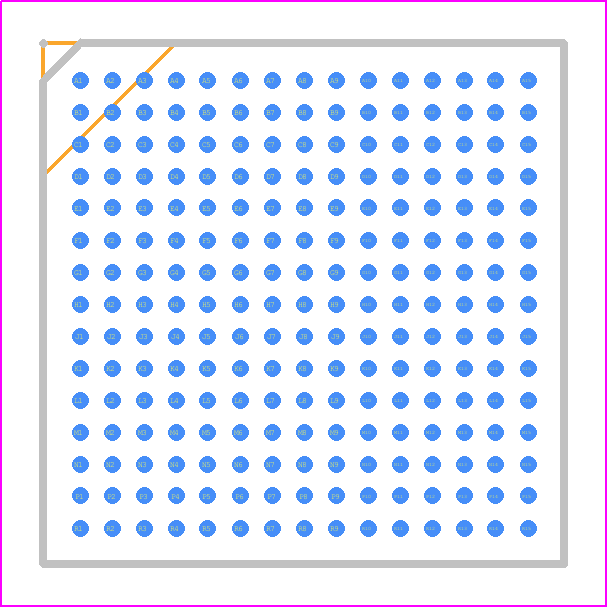

R5F572NNDDBD#20 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0224GA-A-2021
click to zoom
3D Models
R5F572NNDDBD#20 - Renesas Electronics  - 3D model - BGA - PLBG0224GA-A-2021
click to zoom

R5F572NNDDBD#20 Details

  • Manufacturer Part Number:

    R5F572NNDDBD#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFBGA

  • Package Description:

    LFBGA-224

  • Pin Count:

    224

  • Manufacturer Package Code:

    PLBG0224GA

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RXV3

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B224

  • Length:

    13 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    10

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    183

  • Number of Serial I/Os:

    16

  • Number of Terminals:

    224

  • Number of Timers:

    29

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA224,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    1048576

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    240 MHz

  • Supply Current-Max:

    261 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
