R5F72147BDFA#V1 - Renesas Electronics

Description: The SH7216 Series with 32-bit SH-2A CPU core offers a maximum operating frequency of 200 MHz, representing a 1.25-fold improvement in performance over the 160 MHz of Renesas Electronics's existing the SH7211. They also include large-capacity high-speed flash memory and RAM through the use of cutting-edge flash memory technology. Featuring an on-chip power supply step-down circuit, these microcontrollers are designed to achieve lower current dissipation by suppressing the increase in current dissipation asso

Download R5F72147BDFA#V1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

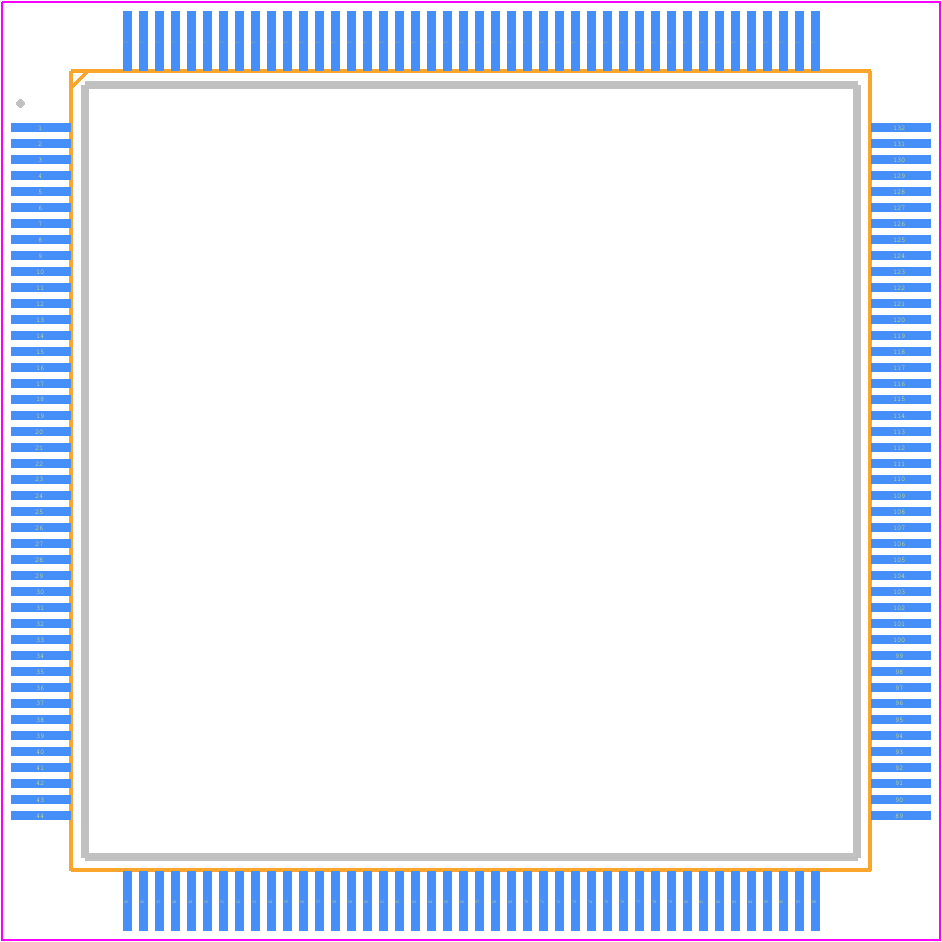

R5F72147BDFA#V1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LFQFP176-20x20-0.40
click to zoom
3D Models
R5F72147BDFA#V1 - Renesas Electronics  - 3D model - Quad Flat Packages - P-LFQFP176-20x20-0.40
click to zoom

R5F72147BDFA#V1 Details

  • Manufacturer Part Number:

    R5F72147BDFA#V1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-176

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLQP0176LA

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SH-2A

  • Clock Frequency-Max:

    12.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    9

  • Number of I/O Lines:

    110

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    176

  • Number of Timers:

    11

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP176,.87SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    131072

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    200 MHz

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
