R5F72375BDFP#V0 - Renesas Electronics

R5F72375BDFP#V0 Details

• Manufacturer Part Number:

  R5F72375BDFP#V0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

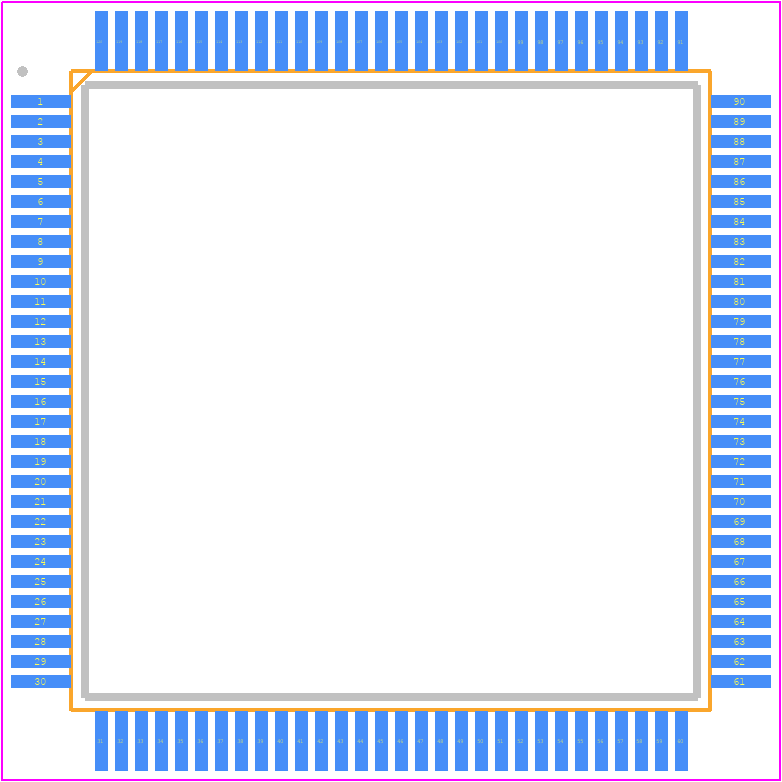

• Part Package Code:

  LQFP

• Pin Count:

  120

• Manufacturer Package Code:

  PLQP0120KA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  1

• Has ADC:

  YES

• Address Bus Width:

  20

• Bit Size:

  32

• CPU Family:

  SH-2A

• Clock Frequency-Max:

  40 MHz

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G120

• Length:

  16 mm

• Number of I/O Lines:

  85

• Number of Terminals:

  120

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP120,.7SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  65536

• ROM (words):

  524288

• ROM Programmability:

  FLASH

• Speed:

  100 MHz

• Supply Current-Max:

  90 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
