R5S72691P266FP#VZ - Renesas Electronics

R5S72691P266FP#VZ Details

• Manufacturer Part Number:

  R5S72691P266FP#VZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LQFP

• Pin Count:

  256

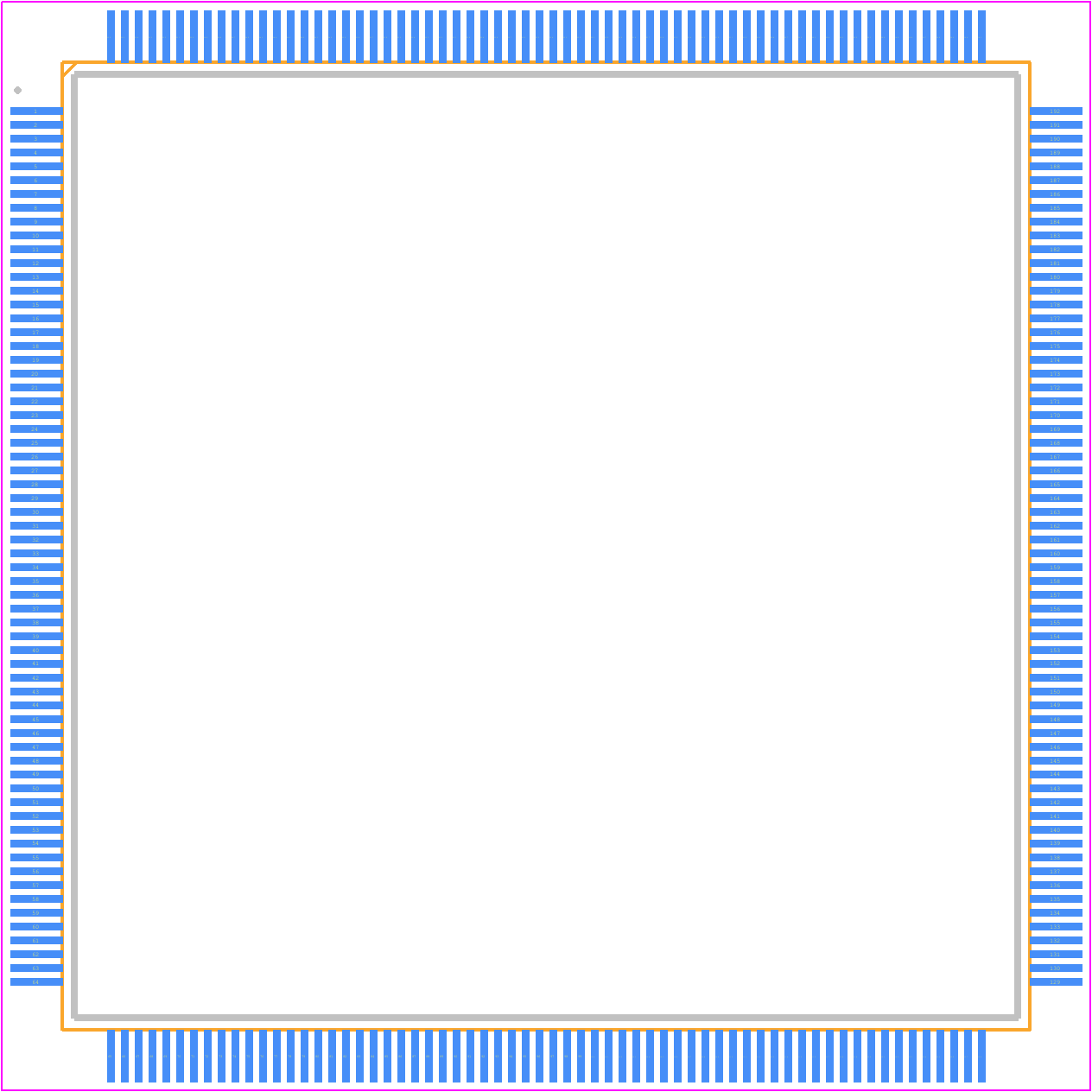

• Manufacturer Package Code:

  PLQP0256LB

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Has ADC:

  YES

• Address Bus Width:

  26

• Bit Size:

  32

• CPU Family:

  SH-2A

• Clock Frequency-Max:

  13.33 MHz

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G256

• Length:

  28 mm

• Number of I/O Lines:

  133

• Number of Terminals:

  256

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP256,1.2SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2686976

• Speed:

  266.67 MHz

• Supply Current-Max:

  285 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
