R5S726A0P216FP#VZ - Renesas Electronics

Description: The SH726A, SH726B Group are high-performance microcontrollers incorporating SH2A-FPU cores. The SH726A and SH726B MCUs are equipped with a new bus controller that enables connection of quad-SPI flash ROM (serial type), which uses fewer connection pins, as external flash memory supporting direct data access. This reduces substantially the number of pins required for connection while maintaining access speeds equivalent to conventional parallel NOR flash. In addition to 216 MHz high-speed operation, 1.25 MB

Download R5S726A0P216FP#VZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5S726A0P216FP#VZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

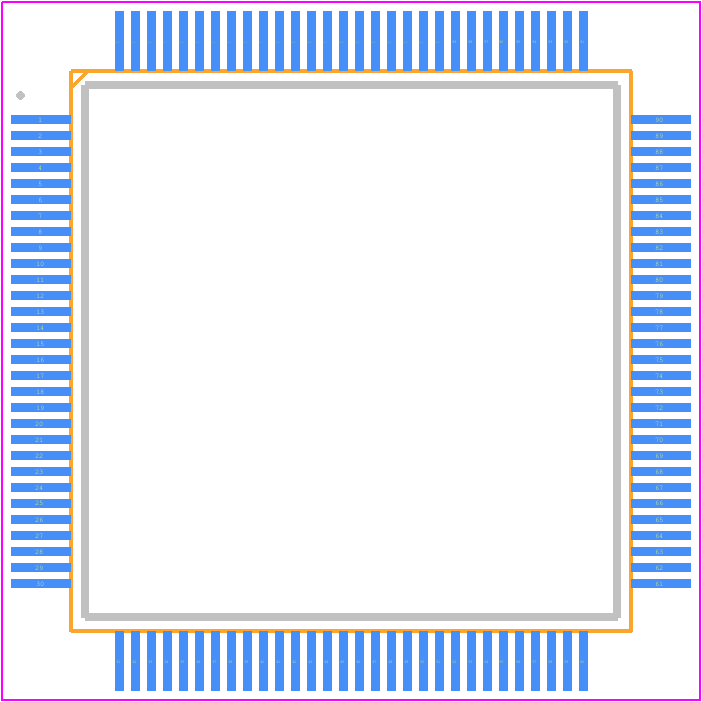

R5S726A0P216FP#VZ - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0120LA-A
click to zoom
3D Models
R5S726A0P216FP#VZ - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0120LA-A
click to zoom

R5S726A0P216FP#VZ Details

  • Manufacturer Part Number:

    R5S726A0P216FP#VZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Pin Count:

    120

  • Manufacturer Package Code:

    PLQP0120KA

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Clock Frequency-Max:

    48 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Length:

    16 mm

  • Number of I/O Lines:

    57

  • Number of Terminals:

    120

  • PWM Channels:

    YES

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Speed:

    216 MHz

  • Supply Voltage-Max:

    1.35 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R5S726A0P216FP#VZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R5S726A0P216FP#VZ is -40°C to +85°C.
  • The clock settings for the R5S726A0P216FP#VZ can be configured using the Clock Control Register (CKCR) and the PLL Control Register (PLLCR). Refer to the datasheet for specific register settings and configuration options.
  • The maximum frequency for the R5S726A0P216FP#VZ's CPU is 216 MHz, and the maximum frequency for the peripherals is 108 MHz.
  • The R5S726A0P216FP#VZ has several low-power modes, including Sleep, Stop, and Deep Standby modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the datasheet for specific register settings and configuration options.
  • The R5S726A0P216FP#VZ has 256 KB of RAM and 1024 KB of flash memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5S726A0P216FP#VZ Overview

Use the download button to access the R5S726A0P216FP#VZ schematic symbol, PCB footprint, and 3D model.
