ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure stable operation, ROHM recommends a soft-start circuit to limit the inrush current during power-up. Additionally, a capacitor should be placed between the VIN and GND pins to filter out noise and voltage spikes. During power-down, the output voltage should be ramped down slowly to prevent voltage overshoot.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the internal circuitry. It's recommended to use a voltage divider or a clamp circuit to limit the voltage on the EN pin to within the specified range.
The R6011ENXC7G is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. ROHM recommends derating the output current and voltage according to the temperature derating curve provided in the datasheet.
To troubleshoot oscillations or instability issues, ROHM recommends checking the PCB layout for noise coupling, ensuring proper decoupling capacitors are used, and verifying the input and output voltage rails are within the specified range. Additionally, the output voltage should be monitored for ringing or oscillations, and the feedback loop should be checked for stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R6011ENXC7G Overview

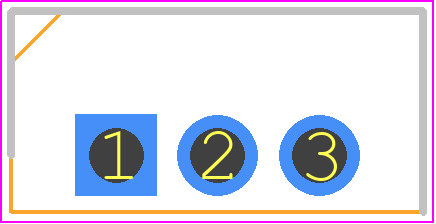

Use the download button to access the R6011ENXC7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R6011,
or try a keyword search, such as Power Field-Effect Transistors
