R6015KNXC7G - ROHM Semiconductor

Description: 600V 15A TO-220FM, High-speed switching Power MOSFET

Download R6015KNXC7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

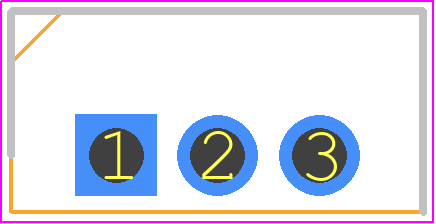

R6015KNXC7G - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220FM_2022-1
click to zoom
3D Models
R6015KNXC7G - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - TO-220FM_2022-1
click to zoom

R6015KNXC7G Details

  • Manufacturer Part Number:

    R6015KNXC7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220FM, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    284 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    15 A

  • Drain-source On Resistance-Max:

    0.29 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    40 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    60 W

  • Pulsed Drain Current-Max (IDM):

    45 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6015KNXC7G Frequently Asked Questions (FAQs)

  • A good PCB layout for the R6015KNXC7G should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
  • To ensure stable output voltage regulation, use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Additionally, ensure the input capacitor is properly sized and placed close to the device.
  • A ceramic capacitor (X5R or X7R dielectric) with a value between 1uF to 10uF is recommended for the input capacitor. This helps to filter out noise and ripple, ensuring stable operation.
  • Implement overcurrent protection (OCP) and overvoltage protection (OVP) circuits to prevent damage from excessive current or voltage. Also, ensure proper thermal design and heat sinking to prevent overheating.
  • The R6015KNXC7G is designed to operate within a frequency range of 100 kHz to 500 kHz. Operating outside this range may affect efficiency, stability, or reliability.
