The thermal resistance (θJA) of the R6015KNZC17 is typically around 40°C/W, but it can vary depending on the PCB design, layout, and environment. It's essential to consider thermal management when designing with this component.
The R6015KNZC17 has an operating temperature range of -40°C to 105°C. While it can operate at high temperatures, it's crucial to ensure that the junction temperature (Tj) does not exceed 150°C to prevent damage or degradation. Proper thermal design and heat sinking may be necessary.
The output capacitor selection depends on the specific application requirements, such as output voltage, current, and ripple. A general guideline is to use a low-ESR capacitor with a capacitance value between 10uF to 100uF. Consult the datasheet and application notes for more detailed guidance.
The R6015KNZC17 has a maximum output current of 1.5A. While it can handle moderate current loads, it may not be suitable for high-current applications. Be sure to check the datasheet and evaluate the component's performance under your specific load conditions.
The R6015KNZC17 is a linear voltage regulator, not a switching regulator. It's designed for low-dropout, low-noise applications and may not be suitable for switching regulator designs. Consider using a dedicated switching regulator IC for such applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R6015KNZC17 Overview

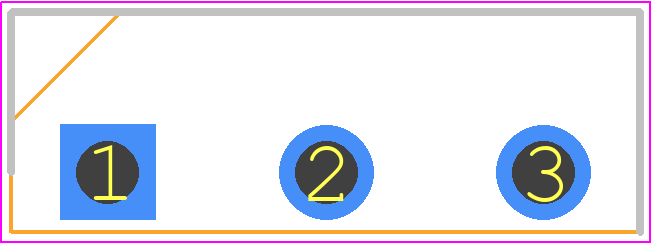

Use the download button to access the R6015KNZC17 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R6015,
or try a keyword search, such as Power Field-Effect Transistors
