R6020KNZC8 - ROHM Semiconductor

Description: MOSFET Nch 600V 20A Si MOSFET

Download R6020KNZC8 Model

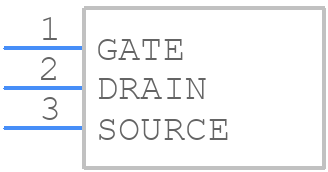

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

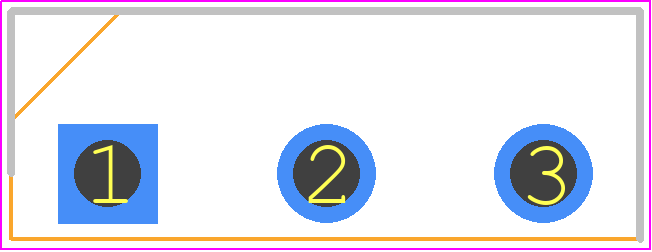

PCB Footprints
R6020KNZC8 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-3PF
click to zoom
3D Models
R6020KNZC8 - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - TO-3PF
click to zoom

R6020KNZC8 Details

  • Manufacturer Part Number:

    R6020KNZC8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TO-3PF, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    418 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.196 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    60 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6020KNZC8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R6020KNZC8 is -40°C to 105°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Typically, this involves setting the input voltage (VIN) between 2.5V and 5.5V, and the output voltage (VOUT) according to the desired output level. Additionally, ensure the input and output capacitors are properly sized and placed to minimize noise and ripple.
  • The maximum output current capability of the R6020KNZC8 is 2A, as specified in the datasheet. However, it's crucial to consider the device's thermal limitations and ensure proper heat sinking to prevent overheating, especially when operating at high output currents.
  • The enable pin (EN) is an active-high input that allows the device to be shut down or started up. To ensure proper shutdown, pull the EN pin low (typically to GND). For startup, pull the EN pin high (typically to VIN). Be sure to follow the recommended timing and voltage levels for the EN pin, as specified in the datasheet.
  • When designing the PCB layout, ensure proper thermal management by providing adequate heat sinking and thermal vias. Keep the device's power traces short and wide to minimize resistance and inductance. Additionally, consider the device's thermal pad and ensure it's properly connected to a heat sink or thermal plane. Follow ROHM's recommended PCB layout guidelines and thermal design considerations to ensure optimal performance and reliability.
