R6030JNZ4C13 - ROHM Semiconductor

Description: 600V 30A TO-247, PrestoMOS™ with integrated high-speed diode

Download R6030JNZ4C13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

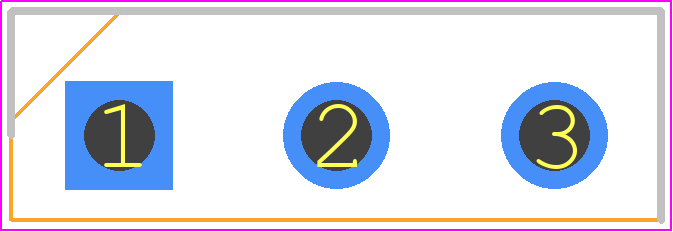

R6030JNZ4C13 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - (TO-247_2021)-****
click to zoom
3D Models
R6030JNZ4C13 - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - (TO-247_2021)-****
click to zoom

R6030JNZ4C13 Details

  • Manufacturer Part Number:

    R6030JNZ4C13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-247G, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-27

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    717 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.143 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    2.2 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    370 W

  • Pulsed Drain Current-Max (IDM):

    90 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6030JNZ4C13 Frequently Asked Questions (FAQs)

  • The thermal resistance (junction-to-ambient) of the R6030JNZ4C13 is typically around 250°C/W, but it can vary depending on the PCB layout, airflow, and other environmental factors.
  • The R6030JNZ4C13 has an operating temperature range of -40°C to 105°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability and prevent overheating.
  • To ensure stability, use a minimum output capacitance of 10uF, and consider adding a 1uF to 10uF ceramic capacitor in parallel with the output capacitor to improve transient response. Also, keep the input and output capacitors close to the regulator and use a low-ESR capacitor for the output.
  • The R6030JNZ4C13 has a maximum input voltage rating of 36V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and prevent overheating.
  • Yes, the R6030JNZ4C13 is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA and low dropout voltage (VDO) of 0.25V. However, consider the battery life and overall system power consumption when selecting the output voltage and current.
