R6030KNXC7G - ROHM Semiconductor

Description: 600V 30A TO-220FM, High-speed switching Power MOSFET

Download R6030KNXC7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

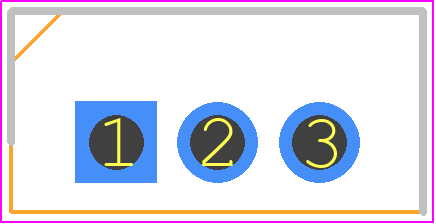

R6030KNXC7G - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - R6030KNXC7G-
click to zoom
3D Models
R6030KNXC7G - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - R6030KNXC7G-
click to zoom

R6030KNXC7G Details

  • Manufacturer Part Number:

    R6030KNXC7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220FM, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    636 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    30 A

  • Drain-source On Resistance-Max:

    0.13 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    BULK

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    86 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6030KNXC7G Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R6030KNXC7G is -40°C to 105°C.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the input voltage within the specified range.
  • The maximum input voltage that the R6030KNXC7G can handle is 36V.
  • The R6030KNXC7G is designed for low-current applications, and its maximum output current is 300mA. If you need a higher current, you may need to consider a different device or add external components to handle the increased current.
  • The output voltage of the R6030KNXC7G can be calculated using the formula: VOUT = (1 + R1/R2) * VREF, where R1 and R2 are the resistors connected to the FB pin, and VREF is the internal reference voltage (1.2V).
