R6511KND3TL1 - ROHM Semiconductor

Description: High-speed Switching, Nch 650V 11A Power MOSFET

Download R6511KND3TL1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

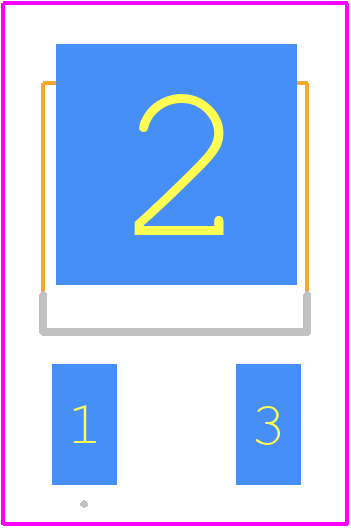

R6511KND3TL1 - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
R6511KND3TL1 - ROHM Semiconductor  - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

R6511KND3TL1 Details

  • Manufacturer Part Number:

    R6511KND3TL1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    223 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    11 A

  • Drain-source On Resistance-Max:

    0.4 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    30 pF

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE, EMBOSSED

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    124 W

  • Pulsed Drain Current-Max (IDM):

    33 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6511KND3TL1 Frequently Asked Questions (FAQs)

  • The thermal resistance (θJA) of the R6511KND3TL1 is 125°C/W, which is not explicitly mentioned in the datasheet. This information can be obtained from ROHM's technical support or application notes.
  • To ensure stability with the R6511KND3TL1, it's essential to follow the recommended PCB layout and component placement guidelines, use a suitable output capacitor with low ESR, and add a 10nF ceramic capacitor between the VIN and GND pins.
  • While the R6511KND3TL1 has a maximum operating temperature of 125°C, it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • ROHM recommends using a 10uF to 22uF ceramic capacitor with a voltage rating of 10V or higher as the input capacitor (CIN) for the R6511KND3TL1.
  • The output voltage of the R6511KND3TL1 can be calculated using the formula: VOUT = 0.8V x (1 + (R1/R2)), where R1 and R2 are the resistors used in the feedback network.
