R6524ENJTL - ROHM Semiconductor

R6524ENJTL Details

• Manufacturer Part Number:

  R6524ENJTL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

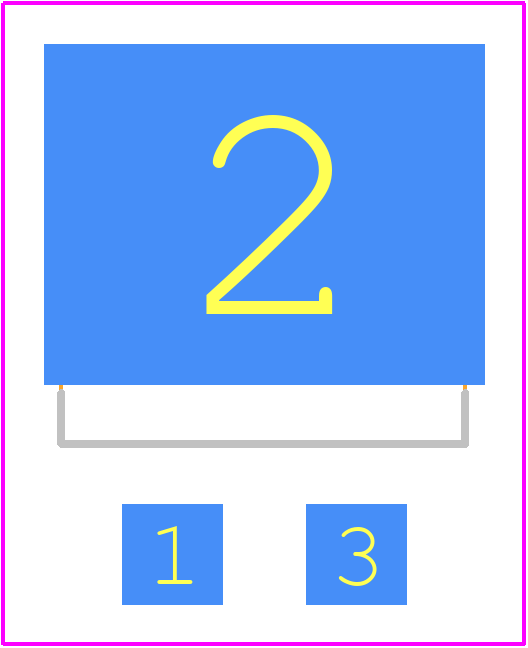

  SC-83, TO-263S, D2PAK-3/2

• ECCN Code:

  EAR99

• Factory Lead Time:

  23 Weeks

• Date Of Intro:

  2017-10-05

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  3

• Avalanche Energy Rating (Eas):

  654 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  650 V

• Drain Current-Max (ID):

  24 A

• Drain-source On Resistance-Max:

  0.185 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JEDEC-95 Code:

  TO-263AB

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e2

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Pulsed Drain Current-Max (IDM):

  72 A

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Copper (Sn/Cu)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
