R71PN433050H6K - Yageo Group

Description: R71H, Film, Metallized Polypropylene, Automotive Grade, 3.3 uF, 10%, 220 VAC, 630 VDC, 125°C, -55°C, 85°C, 0.15 % , 9.0909 GOhms, 110 V/us, 16 nH, 9.9 g, 26.5mm, 22mm, 13mm, Lead Spacing = 22.5mm, 200

Download R71PN433050H6K Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this R71PN433050H6K model

Email notifications will be applied after download.

Send part feedback

Symbol

R71PN433050H6K - Yageo Group - PCB symbol

PCB Footprints

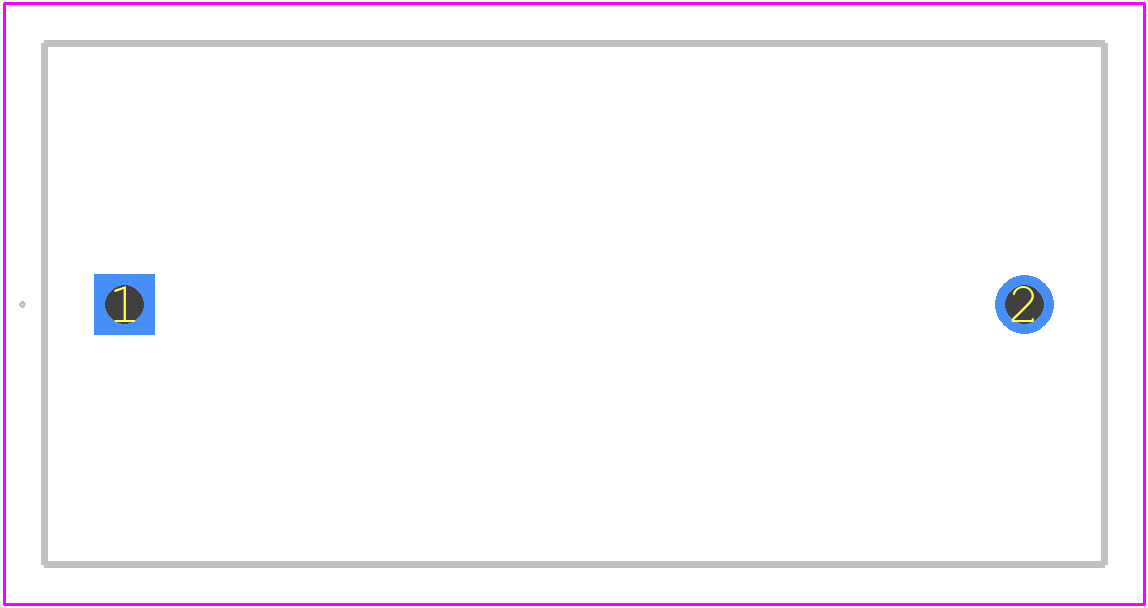

R71PN433050H6K - Yageo Group PCB footprint - Other - Other - R71PN433050H6K-1

3D Models

R71PN433050H6K - Yageo Group - 3D model - Other - R71PN433050H6K-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for R71PN433050H6K
Part Number R71PN433050H6K
Manufacturer Yageo Group
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - R71PN433050H6K-1
Released Date Nov 27, 2021
Last Modified Date Feb 23, 2026 6:46 PM UTC
Pinout / Pin List Click Here (Member Only)

R71PN433050H6K Details

Manufacturer Part Number:
R71PN433050H6K
Manufacturer:
YAGEO Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R71PN433050H6K Overview

Use the download button to access the R71PN433050H6K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R71PN, or try a keyword search, such as Film Capacitors
