R747N2620JMH0J - Yageo Group

Description: R74 125C, Film, Metallized Polypropylene, Automotive Grade, 0.062 uF, 5%, 700 VAC, 2000 VDC, 125°C, -55°C, 85°C, 0.04 % , 100 GOhms, 4500 V/us, 18 nH, 26.5mm, 22mm, 13mm, Lead Spacing = 22.5mm, 150

Download R747N2620JMH0J Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this R747N2620JMH0J model

Email notifications will be applied after download.

Send part feedback

Symbol

R747N2620JMH0J - Yageo Group - PCB symbol

PCB Footprints

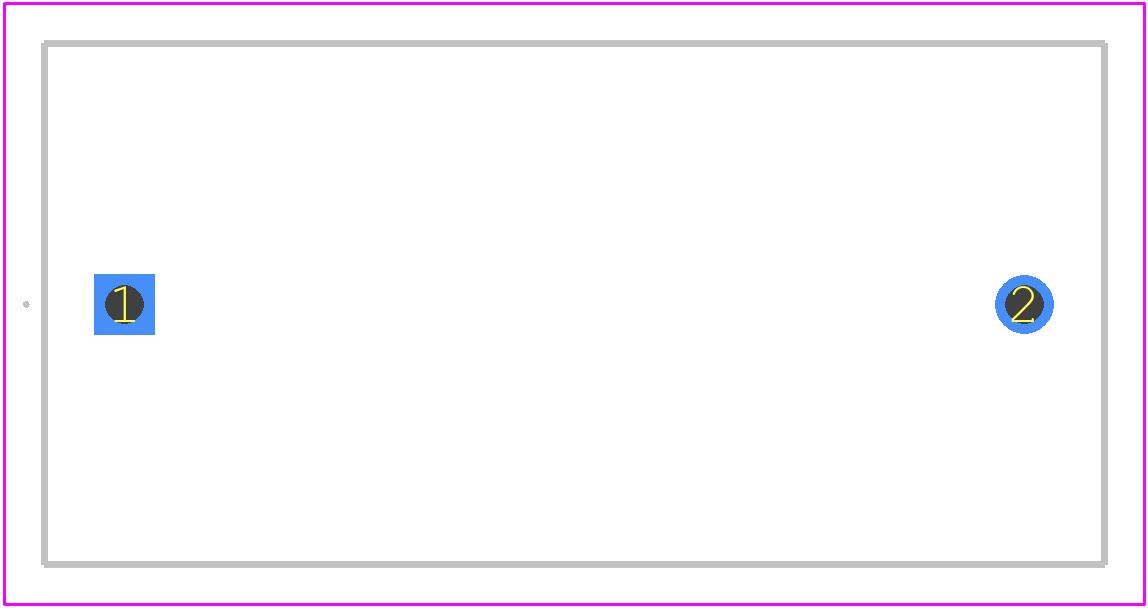

R747N2620JMH0J - Yageo Group PCB footprint - Other - Other - R747N2620JMH0J-2

3D Models

R747N2620JMH0J - Yageo Group - 3D model - Other - R747N2620JMH0J-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for R747N2620JMH0J
Part Number R747N2620JMH0J
Manufacturer Yageo Group
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - R747N2620JMH0J-2
Released Date Sep 5, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

R747N2620JMH0J Details

Manufacturer Part Number:
R747N2620JMH0J
Manufacturer:
YAGEO Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R747N2620JMH0J Overview

Use the download button to access the R747N2620JMH0J schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R747N, or try a keyword search, such as Film Capacitors
