R7F0C009A2DSP#AA0 - Renesas Electronics

Description: R7F0C009A2DSP#AA0, 16 bit RL78 Microcontroller 24MHz 16 kB Flash, 1.5 kB RAM, I2C 30-Pin LSSOP

Download R7F0C009A2DSP#AA0 Model

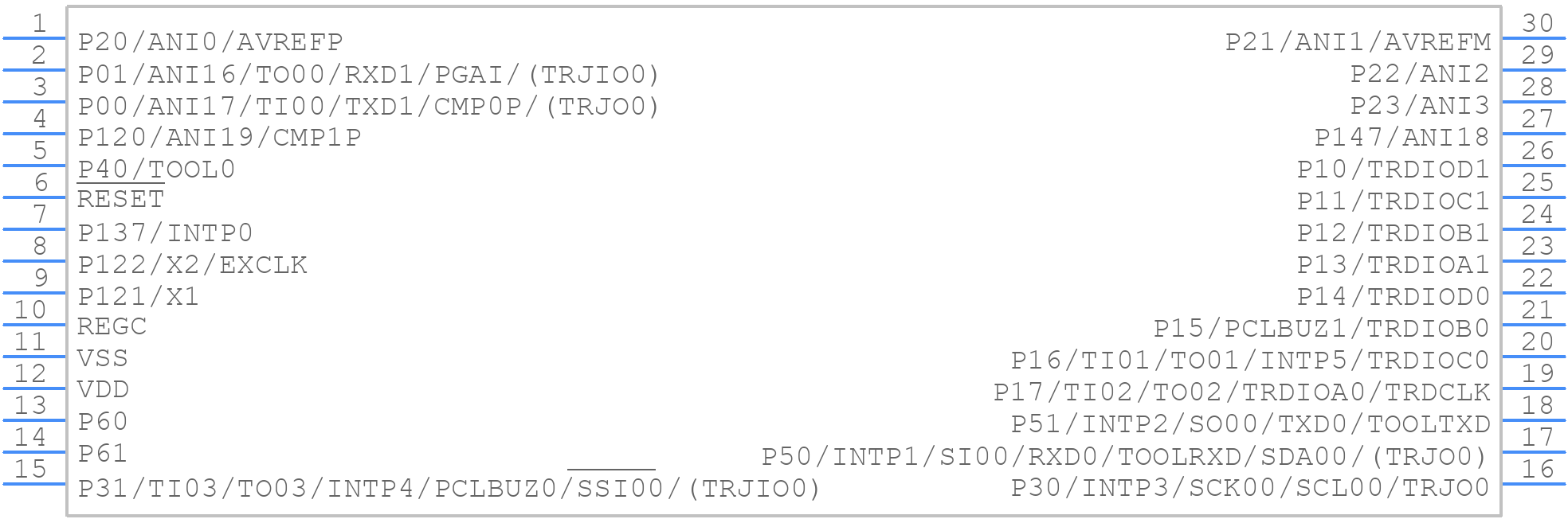

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R7F0C009A2DSP#AA0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - LSSOP
click to zoom
3D Models
R7F0C009A2DSP#AA0 - Renesas Electronics  - 3D model - Small Outline Packages - LSSOP
click to zoom

R7F0C009A2DSP#AA0 Details

  • Manufacturer Part Number:

    R7F0C009A2DSP#AA0

  • Part Life Cycle Code:

    Active

  • Package Description:

    LSSOP,

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7.29

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    30

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • RAM (bytes):

    1536

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    6.9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
