R7F101GFE3CFP#AA1 footprint, schematic symbol and 3D model by Renesas Electronics

R7F101GFE3CFP#AA1 - Renesas Electronics

Description: The RL78/G24 microcontroller has the highest processing performance of the RL78 family of MCUs, with a CPU operating frequency up to 48 MHz and a flexible application accelerator (FAA). In addition, the enhanced analog functions and an abundance of timers make it a good fit for motor control, power supply, and lighting applications. The FAA is a co-processor dedicated to arithmetic operations, and can be operated independently of the CPU, delivering higher processing power.A rich development environment is

Download R7F101GFE3CFP#AA1 Model

Schematic
symbols

PCB
footprints

3D
models

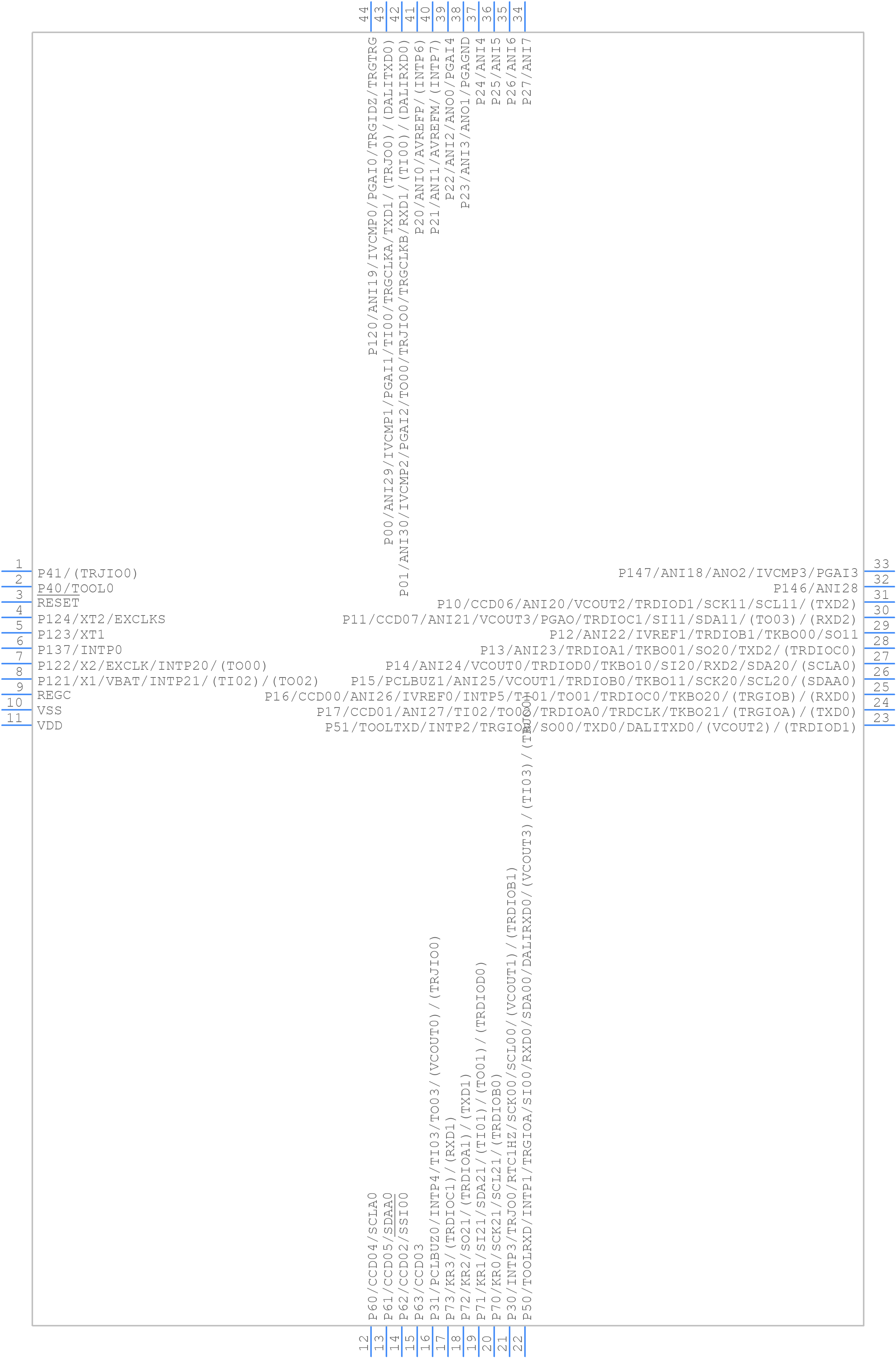

Symbol

click to zoom

PCB Footprints

R7F101GFE3CFP#AA1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 44 PIN PLASTIC LQFP (10x10)

click to zoom

3D Models

R7F101GFE3CFP#AA1 - Renesas Electronics - 3D model - Quad Flat Packages - 44 PIN PLASTIC LQFP (10x10)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R7F101GFE3CFP#AA1
Part Number R7F101GFE3CFP#AA1
Manufacturer Renesas Electronics
Pin Count 44
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 44 PIN PLASTIC LQFP (10x10)
Released Date Nov 16, 2023
Pinout / Pin List Click Here (Member Only)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R7F101GFE3CFP#AA1 Overview

Use the download button to access the R7F101GFE3CFP#AA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R7F10, or try a keyword search, such as Microcontrollers
