R7F102GGC3CFB#UA0 footprint, schematic symbol and 3D model by Renesas Electronics

R7F102GGC3CFB#UA0 - Renesas Electronics

Description: RL78 RL78/G22 Microcontroller IC 16-Bit 32MHz 32KB (32K x 8) FLASH 48-LFQFP (7x7)

Download R7F102GGC3CFB#UA0 Model

Schematic
symbols

PCB
footprints

3D
models

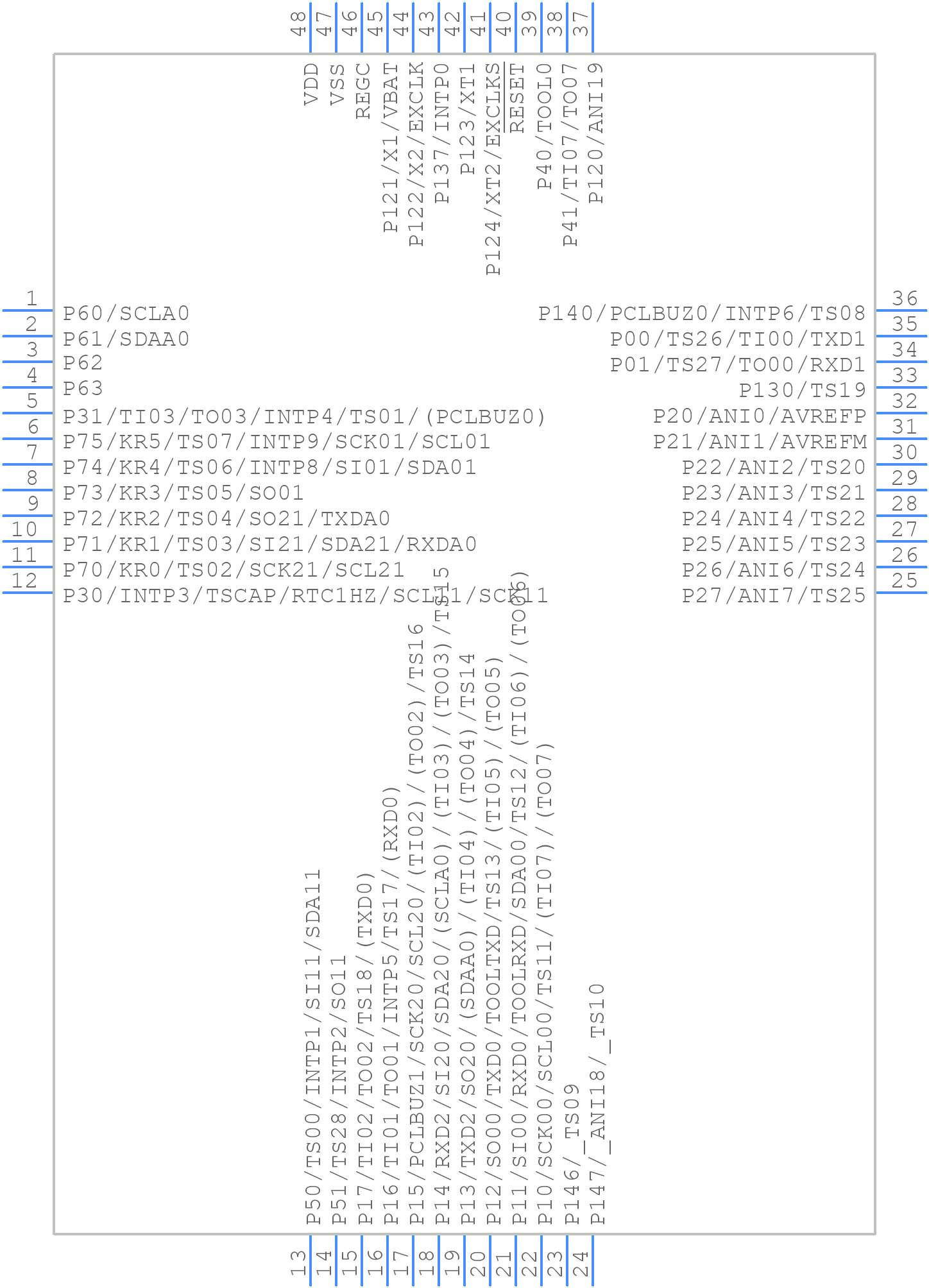

Symbol

click to zoom

PCB Footprints

R7F102GGC3CFB#UA0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-B

click to zoom

3D Models

R7F102GGC3CFB#UA0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB-B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R7F102GGC3CFB#UA0
Part Number R7F102GGC3CFB#UA0
Manufacturer Renesas Electronics
Pin Count 48
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - PLQP0048KB-B
Released Date May 24, 2024
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

R7F102GGC3CFB#UA0 Details

Manufacturer Part Number:
R7F102GGC3CFB#UA0
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
3A991.A.2
HTS Code:
8542.31.00.20
Manufacturer:
Renesas Electronics Corporation
YTEOL:
11
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R7F102GGC3CFB#UA0 Overview

Use the download button to access the R7F102GGC3CFB#UA0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R7F10, or try a keyword search, such as Microcontrollers

Parts related to R7F102GGC3CFB#UA0

Showing 0 results

R7F102GGC3CFB#UA0 Alternates

Showing results


Part Number

Model

R7F102GGC2DFB#BA0 Renesas Electronics Corporation
