R7F701408EABG - Renesas Electronics

R7F701408EABG Details

• Manufacturer Part Number:

  R7F701408EABG

• Brand Name:

  Renesas

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA376

• Package Description:

  BGA-376

• Pin Count:

  376

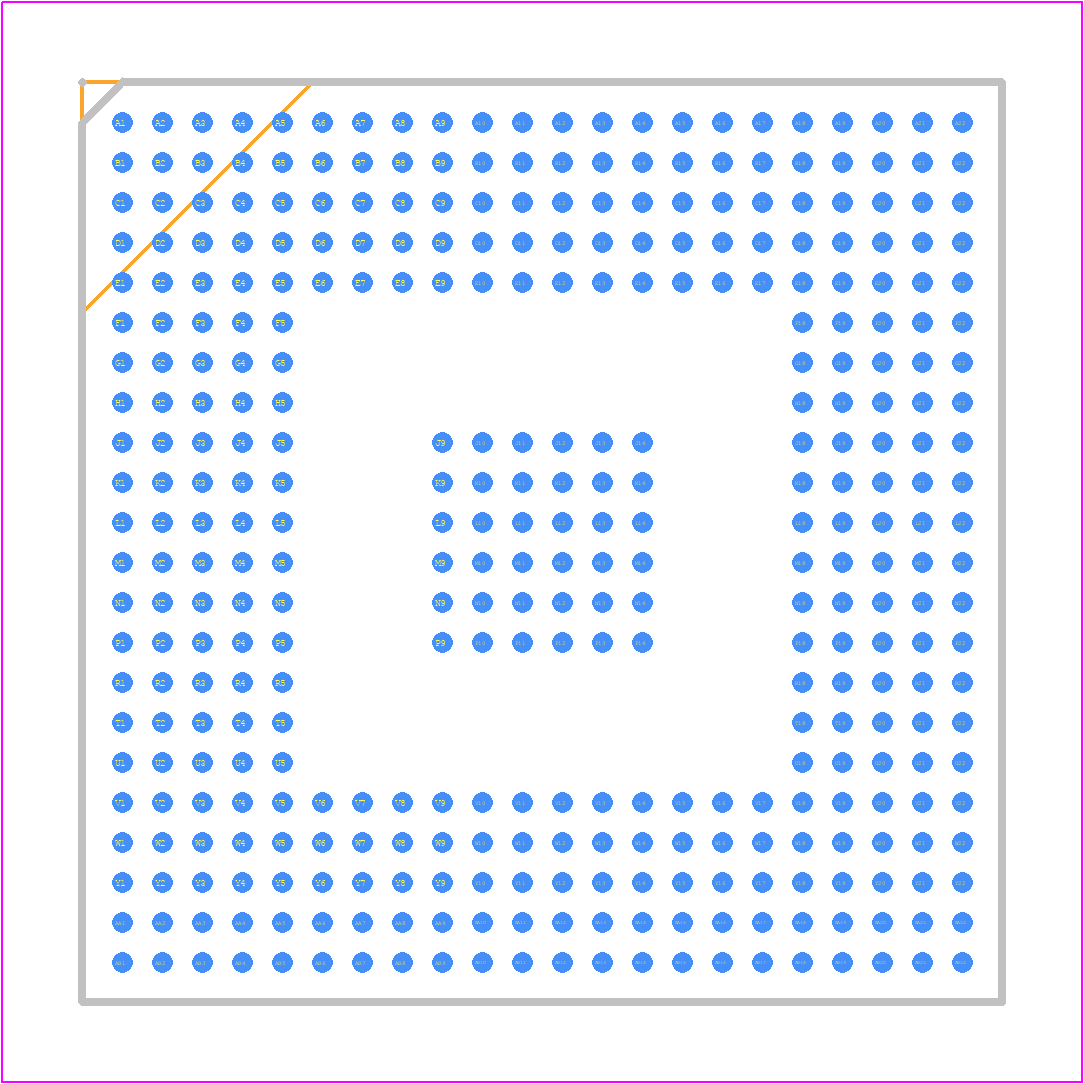

• Manufacturer Package Code:

  PRBG0376FB-A

• ECCN Code:

  3A001.a.2.a

• HTS Code:

  8542.31.00.25

• Date Of Intro:

  2020-10-07

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.97

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  RH850

• Clock Frequency-Max:

  8 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  11

• Number of I/O Lines:

  159

• Number of Terminals:

  376

• Number of Timers:

  2

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Style:

  GRID ARRAY

• RAM (bytes):

  524288

• RAM (words):

  524288

• ROM (words):

  3932160

• ROM Programmability:

  FLASH

• Speed:

  240 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Position:

  BOTTOM

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
