R7FA2A1AB3CNE#BA0 - Renesas Electronics

Description: The RA2A1 Group of microcontrollers (MCUs) uses a high-performance Arm® Cortex®-M23 core and offers highly integrated, high-accuracy analog capabilities. This group of ICs offers a complete MCU with analog solution for signal conditioning and measurement. The RA2A1 Group supports a wide operating voltage range of 1.6V to 5.5V. It includes a 16-bit SAR ADC, 24-bit Sigma-Delta ADC, comparators, operational amplifiers, and DACs. The RA2A1 MCU targets cost sensitive and low power industrial sensor applications

Download R7FA2A1AB3CNE#BA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

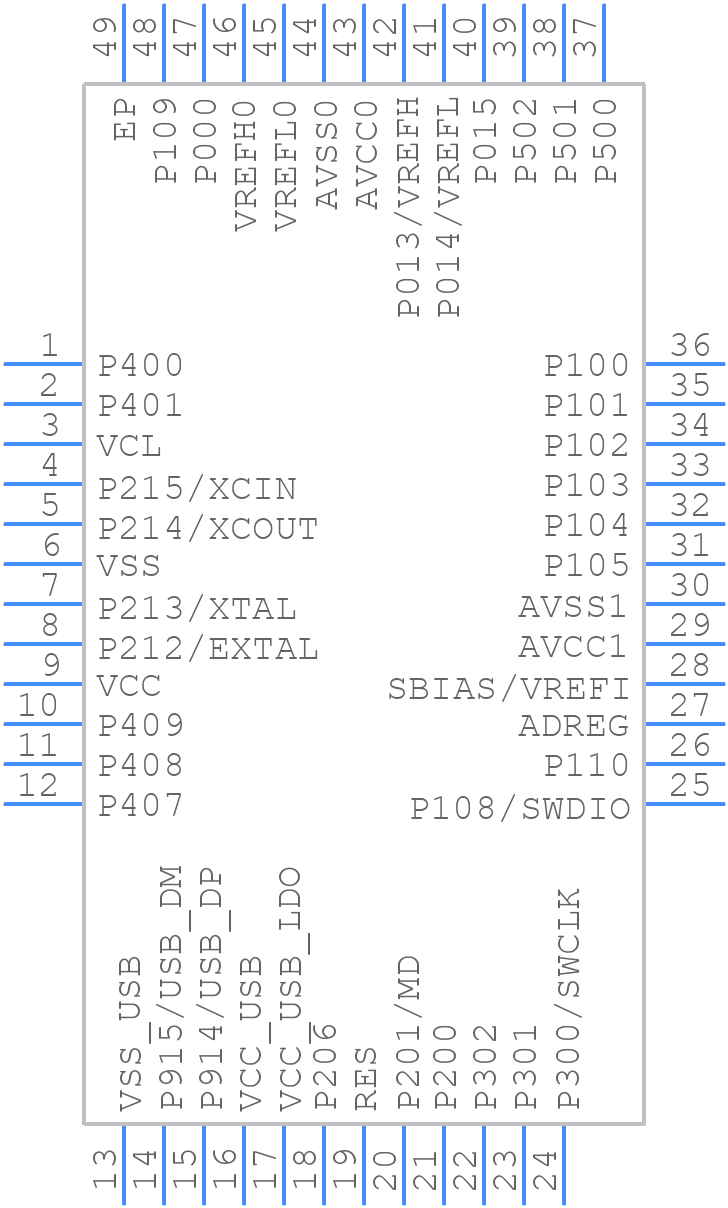

R7FA2A1AB3CNE#BA0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

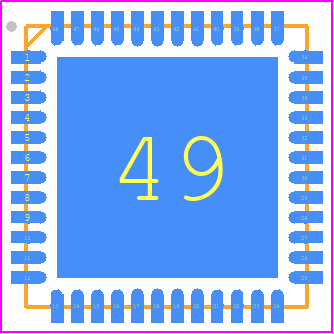

R7FA2A1AB3CNE#BA0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0048KB-A
click to zoom
3D Models
R7FA2A1AB3CNE#BA0 - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0048KB-A
click to zoom

R7FA2A1AB3CNE#BA0 Details

  • Manufacturer Part Number:

    R7FA2A1AB3CNE#BA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    11

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FA2A1AB3CNE#BA0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FA2A1AB3CNE#BA0 is -40°C to 85°C.
  • The clock settings for the R7FA2A1AB3CNE#BA0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Synergy Platform documentation for detailed instructions.
  • The maximum current consumption of the R7FA2A1AB3CNE#BA0 depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is approximately 350 mA at 48 MHz and 3.3 V.
  • The R7FA2A1AB3CNE#BA0 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the datasheet and the Renesas Synergy Platform documentation for detailed instructions.
  • The R7FA2A1AB3CNE#BA0 has several communication interfaces, including UART, SPI, I2C, I2S, USB, and Ethernet. The availability of these interfaces depends on the specific package and configuration.
