R7FS124773A01CFL#BA1 - Renesas Electronics

Description: Uniquely suited for simple battery-operated sensing applications that require low power operation modes and fast wake-up times, the S124 MCU Group has 128 KB of flash memory and 16 KB of SRAM. It includes a 14-bit A/D Converter, 12-bit D/A Converter, and a Capacitive Touch Sensing Unit, in addition to safety and security features.Synergy Software Package (SSP)Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license r

Download R7FS124773A01CFL#BA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

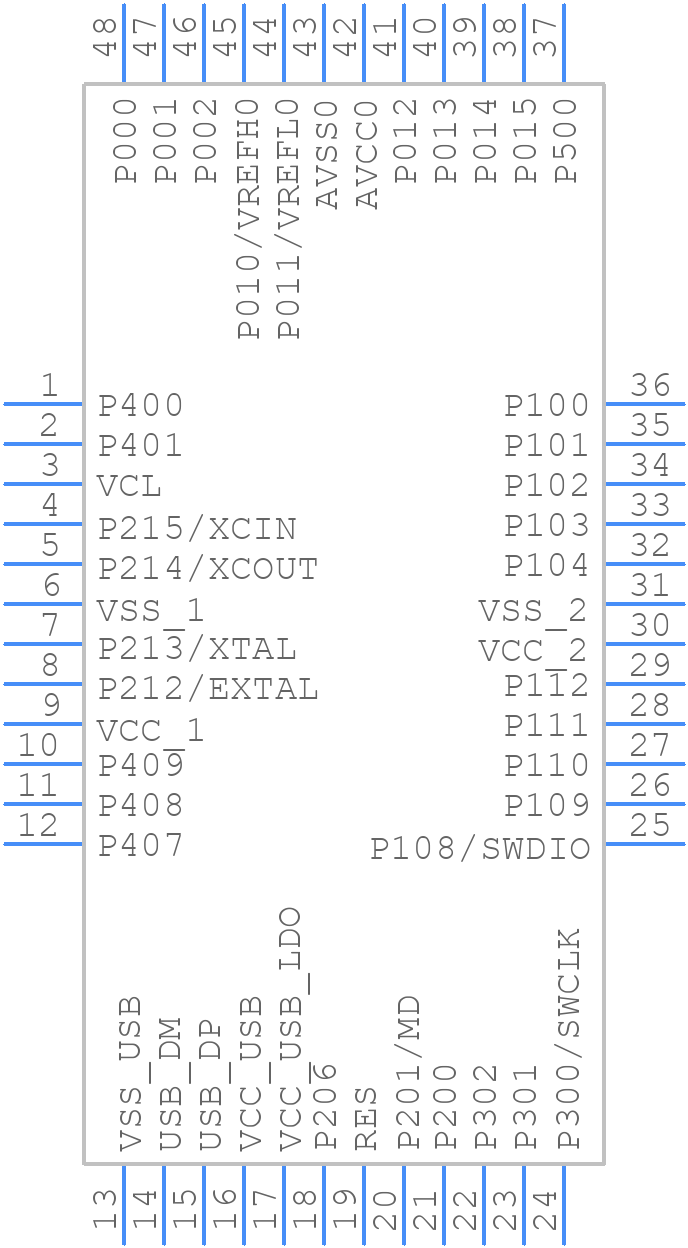

R7FS124773A01CFL#BA1 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

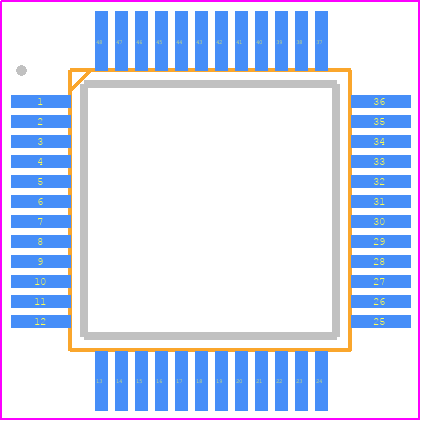

R7FS124773A01CFL#BA1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LFQFP48-7x7-0.50-1
click to zoom
3D Models
R7FS124773A01CFL#BA1 - Renesas Electronics - 3D model - Quad Flat Packages - P-LFQFP48-7x7-0.50-1
click to zoom

R7FS124773A01CFL#BA1 Details

  • Manufacturer Part Number:

    R7FS124773A01CFL#BA1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS124773A01CFL#BA1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R7FS124773A01CFL#BA1 is 2.7V to 3.6V.
  • The clock settings for the R7FS124773A01CFL#BA1 can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum clock frequency supported by the R7FS124773A01CFL#BA1 is 32 MHz.
  • The built-in ADC on the R7FS124773A01CFL#BA1 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum current consumption of the R7FS124773A01CFL#BA1 is approximately 15 mA at 3.3V and 32 MHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R7FS124773A01CFL#BA1 Overview

Use the download button to access the R7FS124773A01CFL#BA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R7FS1, or try a keyword search, such as Microcontrollers
