R7FS1JA783A01CFM#AA0 - Renesas Electronics

Description: The S1JA Group MCU is used as an example due to its highly integrated, high-accuracy analog capabilities and offers complete Analog Solution for signal conditioning and measurement. The S1JA Group has 256 KB flash memory, 32 KB SRAM memory, and a wide operating voltage range of 1.6V to 5.5V. It includes 16-bit SAR ADC, 24-bit Sigma-Delta ADC, Comparators, Operational amplifiers, and DACs.Synergy Software Package (SSP)Commercial software worth over $100K which is available to developers using the Synergy Pla

Download R7FS1JA783A01CFM#AA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

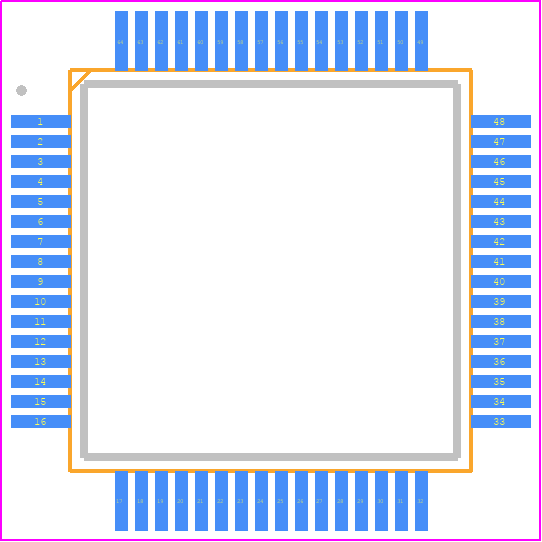

R7FS1JA783A01CFM#AA0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0064KB-C
click to zoom
3D Models
R7FS1JA783A01CFM#AA0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0064KB-C
click to zoom

R7FS1JA783A01CFM#AA0 Details

  • Manufacturer Part Number:

    R7FS1JA783A01CFM#AA0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PLQP0064KB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2018-11-09

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS1JA783A01CFM#AA0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for R7FS1JA783A01CFM#AA0 is -40°C to +85°C.
  • The clock settings for R7FS1JA783A01CFM#AA0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the user manual for detailed instructions.
  • The maximum frequency of the CPU for R7FS1JA783A01CFM#AA0 is 240 MHz.
  • The built-in flash memory of R7FS1JA783A01CFM#AA0 can be used by configuring the Flash Memory Control Register (FMC) and using the Flash Memory Access Functions provided in the user manual.
  • The power consumption characteristics of R7FS1JA783A01CFM#AA0 are: Active mode: 350 mA/MHz (typical), Sleep mode: 10 μA (typical), and Stop mode: 1 μA (typical).
