R7FS3A17C2A01CLK#AC0 - Renesas Electronics

R7FS3A17C2A01CLK#AC0 Details

• Manufacturer Part Number:

  R7FS3A17C2A01CLK#AC0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  LGA

• Pin Count:

  145

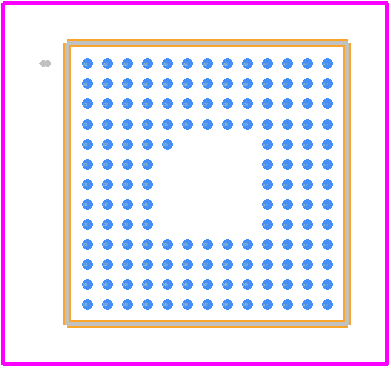

• Manufacturer Package Code:

  PTLG0145KA

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2018-02-27

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-XBGA-N145

• Length:

  7 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  4

• Number of External Interrupts:

  16

• Number of I/O Lines:

  126

• Number of Serial I/Os:

  8

• Number of Terminals:

  145

• Number of Timers:

  13

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  TFLGA

• Package Equivalence Code:

  LGA145,13X13,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, THIN PROFILE, FINE PITCH

• Packing Method:

  TRAY

• RAM (bytes):

  196608

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.05 mm

• Speed:

  48 MHz

• Supply Current-Max:

  62 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
