R7FS3A17C3A01CNB#AC0 - Renesas Electronics

R7FS3A17C3A01CNB#AC0 Details

• Manufacturer Part Number:

  R7FS3A17C3A01CNB#AC0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

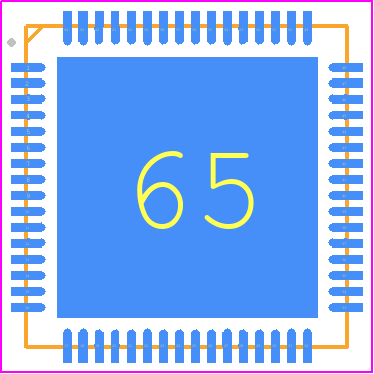

• Part Package Code:

  QFN

• Pin Count:

  64

• Manufacturer Package Code:

  PWQN0064LA

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  24 Weeks

• Date Of Intro:

  2018-02-27

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  9

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  8

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-XQCC-N64

• Length:

  8 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  4

• Number of External Interrupts:

  16

• Number of I/O Lines:

  52

• Number of Serial I/Os:

  7

• Number of Terminals:

  64

• Number of Timers:

  13

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC64,.32SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TRAY

• RAM (bytes):

  196608

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.8 mm

• Speed:

  48 MHz

• Supply Current-Max:

  62 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  8 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
