R7FS3A6783A01CNE#BA0 - Renesas Electronics

Description: Ideal for control applications that need to drive a segment LCD panel, the S3A6 MCU Group has the optimal combination of low power and high performance, with an ARM® Cortex® -M4 CPU core running up to 48 MHz, 256 KB of flash memory, and 32 KB of SRAM. It includes a segment LCD controller, Capacitive Touch Sensing Unit, USB 2.0 Full-Speed, 14-bit A/D Converter, 12-bit D/A Converter, temperature sensor, and safety and security features.Synergy Software Package (SSP)Commercial software worth over $100K which i

Download R7FS3A6783A01CNE#BA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

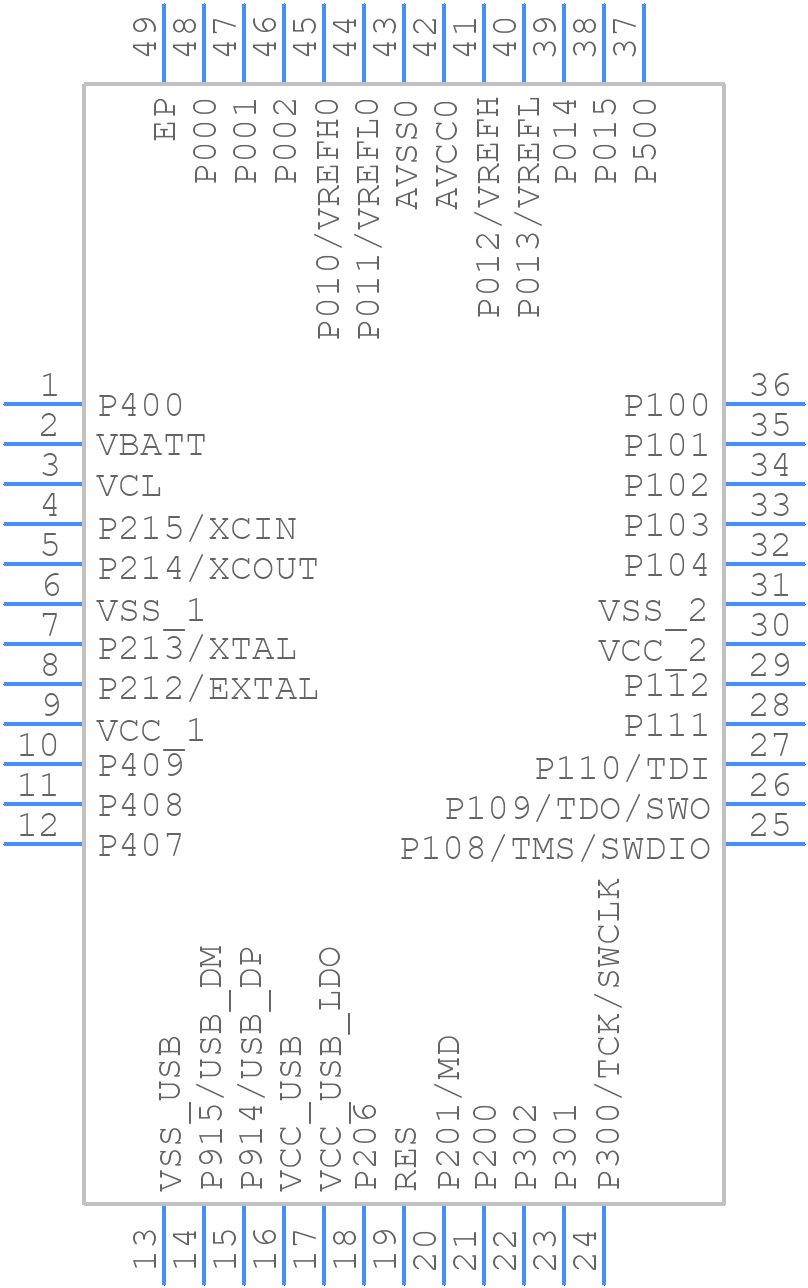

R7FS3A6783A01CNE#BA0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

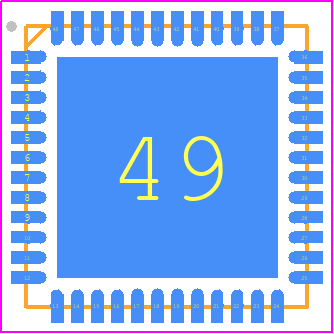

R7FS3A6783A01CNE#BA0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0048KB-A
click to zoom
3D Models
R7FS3A6783A01CNE#BA0 - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0048KB-A
click to zoom

R7FS3A6783A01CNE#BA0 Details

  • Manufacturer Part Number:

    R7FS3A6783A01CNE#BA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS3A6783A01CNE#BA0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FS3A6783A01CNE#BA0 is -40°C to 85°C, as specified in the datasheet.
  • The clock settings for the R7FS3A6783A01CNE#BA0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum current consumption of the R7FS3A6783A01CNE#BA0 depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is approximately 350 mA at 3.3 V and 200 MHz.
  • The R7FS3A6783A01CNE#BA0 has several low-power modes, including Sleep, Stop, and Low-Power Run modes. These modes can be implemented using the Power Management Controller (PMC) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The R7FS3A6783A01CNE#BA0 has several communication interfaces, including UART, SPI, I2C, I2S, and Ethernet. It also has a USB 2.0 interface with Host and Device functionality.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R7FS3A6783A01CNE#BA0 Overview

Use the download button to access the R7FS3A6783A01CNE#BA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R7FS3, or try a keyword search, such as Microcontrollers
