R7FS5D97C2A01CBG#AC0 - Renesas Electronics

Description: Optimal for HMI applications that require a wide section of connectivity, the S5D9 MCU Group delivers processing performance, supports an Ethernet with PTP controller, and offers up to 2 MB of flash memory and 640 KB of SRAM. It provides analog signal conditioning with Programmable Gain Amplifiers for analog processing, color graphics with a TFTLCD Controller, and a 2D Drawing Engine.Synergy Software Package (SSP)Commercial software worth over $100K which is available to developers using the Synergy Platfor

Download R7FS5D97C2A01CBG#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

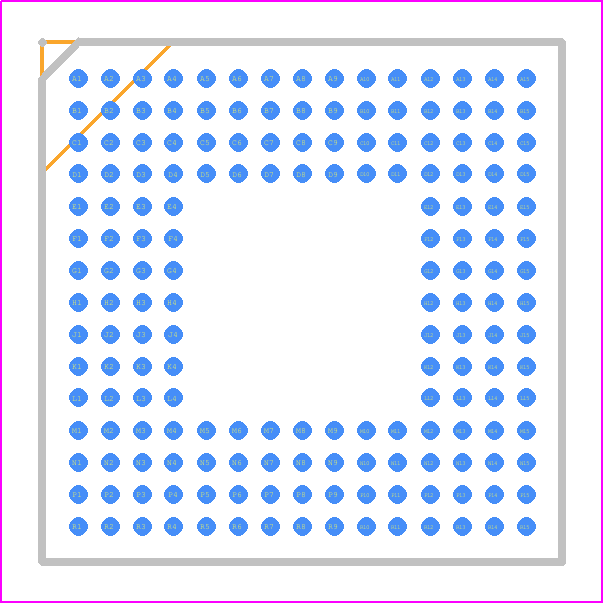

R7FS5D97C2A01CBG#AC0 - Renesas Electronics PCB footprint - BGA - BGA - R7FS5D97C2A01CBG#AC0
click to zoom
3D Models
R7FS5D97C2A01CBG#AC0 - Renesas Electronics  - 3D model - BGA - R7FS5D97C2A01CBG#AC0
click to zoom

R7FS5D97C2A01CBG#AC0 Details

  • Manufacturer Part Number:

    R7FS5D97C2A01CBG#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLBG0176GE

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B176

  • Length:

    13 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    133

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    176

  • Number of Timers:

    17

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA176,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    655360

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    120 MHz

  • Supply Current-Max:

    137 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS5D97C2A01CBG#AC0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FS5D97C2A01CBG#AC0 is -40°C to 85°C.
  • The clock settings for the R7FS5D97C2A01CBG#AC0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the R7FS5D97C2A01CBG#AC0's CPU is 400 MHz.
  • The R7FS5D97C2A01CBG#AC0 has several low-power modes, including Sleep, Stop, and Low-Power Run modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The R7FS5D97C2A01CBG#AC0 has 512 KB of RAM and 2 MB of Flash memory.
