R7FS5D97E3A01CBG#AC0 - Renesas Electronics

Description: Optimal for HMI applications that require a wide section of connectivity, the S5D9 MCU Group delivers processing performance, supports an Ethernet with PTP controller, and offers up to 2 MB of flash memory and 640 KB of SRAM. It provides analog signal conditioning with Programmable Gain Amplifiers for analog processing, color graphics with a TFTLCD Controller, and a 2D Drawing Engine.Synergy Software Package (SSP)Commercial software worth over $100K which is available to developers using the Synergy Platfor

Download R7FS5D97E3A01CBG#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FS5D97E3A01CBG#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

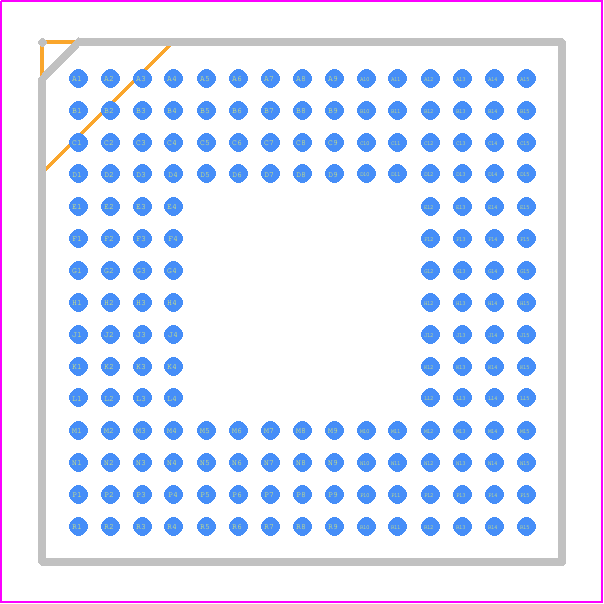

R7FS5D97E3A01CBG#AC0 - Renesas Electronics PCB footprint - BGA - BGA - LFBGA-176
click to zoom
3D Models
R7FS5D97E3A01CBG#AC0 - Renesas Electronics - 3D model - BGA - LFBGA-176
click to zoom

R7FS5D97E3A01CBG#AC0 Details

  • Manufacturer Part Number:

    R7FS5D97E3A01CBG#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLBG0176GE

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R7FS5D97E3A01CBG#AC0 Overview

Use the download button to access the R7FS5D97E3A01CBG#AC0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R7FS5, or try a keyword search, such as Microcontrollers
